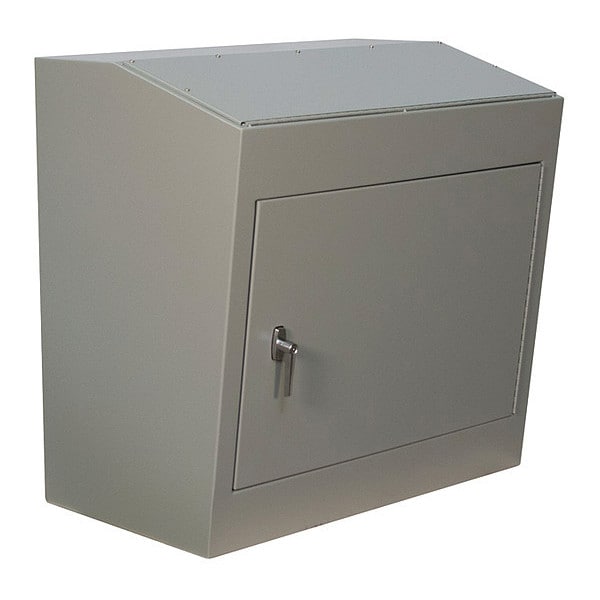

Console, Carbon Steel, Box
| Item | Console |
|---|---|
| Material | Carbon Steel |
| Nominal Length | 36 in |
| Nominal Width | 36 in |
| Nominal Depth | 20 in |
| Color | Gray |
| Width | 36.13 in |
| Length | 36.13 in |
| Depth | 20.13 in |
| Certified Listed | cULus Listed |
| Special Features | Bodies and doors fabricated from 14 gauge steel. Seams are continuously welded and ground smooth. 3-point keylocking handle is provided on front, main door. Main hinged doors are flush. Large sloping control panels are hinged along the bottom edge. Control panels have captive screws which thread into sealed wells. Grounding provisions included. Door stops provided to hold control panel open. Print pocket is provided. Closed cell neoprene gasket is provided. Removable back panel included with console. Studs are welded to inside of console for mounting back panel. |
| Standard | cULus |
| Actual Depth | 20.13 in |
| Application | Designed to hold electrical and electronic controls and instruments. Pushbuttons, pilot lights, meters, switches, etc., can be mounted on sloping control surfaces. Interior components can be mounted on standard back panel and terminal straps. Heavy duty c |
| Finish | Polyester Powder |
| Actual Width | 36.13 in |
| Actual Height | 36.13 in |
| Height | 36 in |
| Features | Fabricated from carbon steel; Seams are continuously welded and ground smooth; Removable back panel is provided with the console.; The large sloping control panel is hinged along the bottom edge. |
| Package Quantity | 1 |
