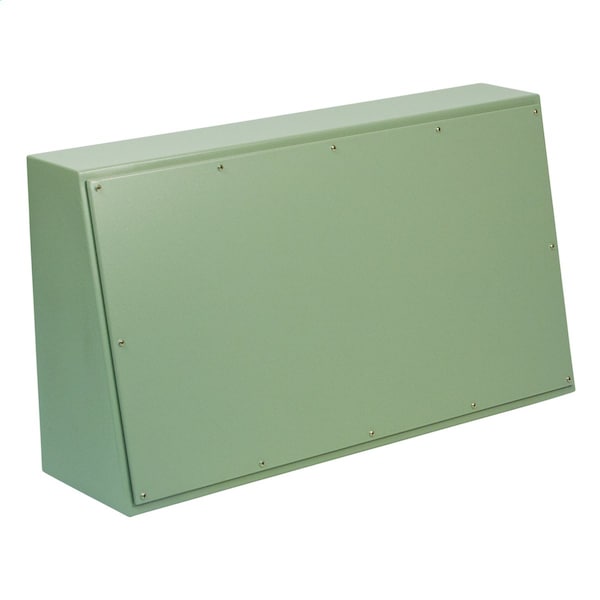

Enclosure Cover, 13 in. H x 24 in. W x 16 in. L, Carbon Steel
| Item | Enclosure Cover |
|---|---|
| For Use With | WC14B console |
| Dimension | 13 in. H x 24 in. W x 16 in. L |
| Height | 13 in |
| Width | 24 in |
| Type | Console Top |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Color | Gray |
| Finish | Polyester Powder |
| NEMA Enclosure Type | NEMA 12 |
| Application | For use with WC14B console. |
| Features | Fabricated from 14 gauge steel. Top unit is 12.5" deep to accommodate most instruments. Seams are continuously welded and ground smooth, less knockouts or holes. Instrument and access panels have captivated screws which thread into sealed wells. 4 holes are provided in bottom of top for mounting to body. Instrument and access panels are removable. Closed cell neoprene gasket. |
| Length | 16 in |
| Depth | 16 in |
| Certified Listed | cULus |
| Cubic Capacity | 4,992 cu in |
| UL Listed | Yes |
| Cover Type | Screw Cover |
| Series | WC14 |
| Actual Depth | 16.13 in |
| Finish Type | Polyester |
| Nema Rating | 12 |
| Standard | cULus |
| Each - Width | 24.13 in |
| Listings | UL, CSA |
| Mounting Type | Mounting Holes |
| Actual Width | 24.13 in |
| Actual Height | 12.63 in |
| Construction | Continuously Welded Seams |
| Package Quantity | 1 |
