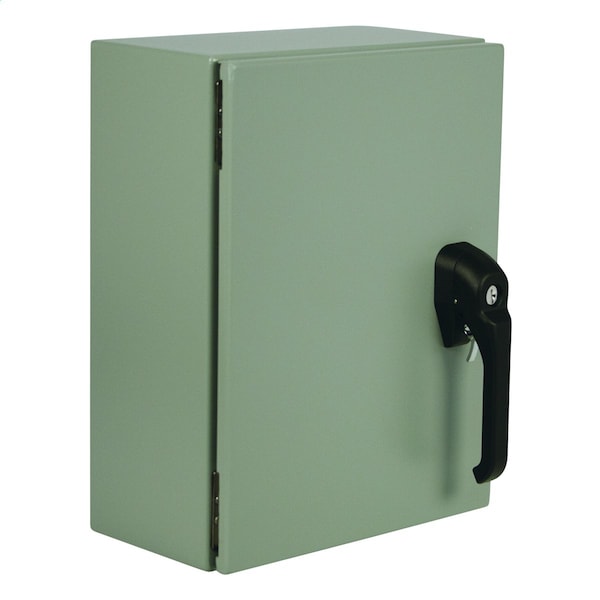

Enclosure Cover, 20 in. H x 24 in. W x 8 in. L, Carbon Steel
| Item | Enclosure Cover |
|---|---|
| Dimension | 20 in. H x 24 in. W x 8 in. L |
| Height | 20 in |
| Width | 24 in |
| Type | Enclosure |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Color | Gray |
| Finish | Smooth |
| NEMA Enclosure Type | NEMA 12, NEMA 1, NEMA 4, NEMA 3R, NEMA 13 |
| Application | Hubbell Wiegmann N4121PTC ULTIMATE Series Enclosures are designed to house and protect electrical and eletronic components from harsh, dirty environments. For use in installations where dirt, dust, oil water, or other contaminants are present. Streamlined |
| Depth | 8 in |
| Features | Bodies and doors fabricated from 14 gauge steel; Continuously welded seams ground smooth, less holes and knockouts; Doors are interchangeable and easily removed; Grounding studs are welded to door and body assuring a positive ground; Print pocket is provided; Doors are sealed with poured-in place gasket; Mounting holes in rear of enclosure; Collar studs for mounting optional back panel; With 1pt keylocking/padlocking combo handle |
| Length | 8 in |
| Actual Height | 20.06 in |
| Cubic Capacity | 3,840 cu in |
| Construction | Continuously Welded Seams |
| Nema Rating | 4 |
| Latches Type | Handle |
| Cover Type | Door |
| Number of Doors (Fixed) | 1 |
| Certified Listed | cULus;IEC |
| Each - Width | 24 in |
| Mounting Type | Mounting Holes |
| UL Listed | Yes |
| Finish Type | Smooth |
| Actual Width | 26-1/2 in |
| Listings | UL, CSA |
| Standard | cULus;IEC |
| Actual Depth | 9-3/4 in |
| Package Quantity | 1 |
