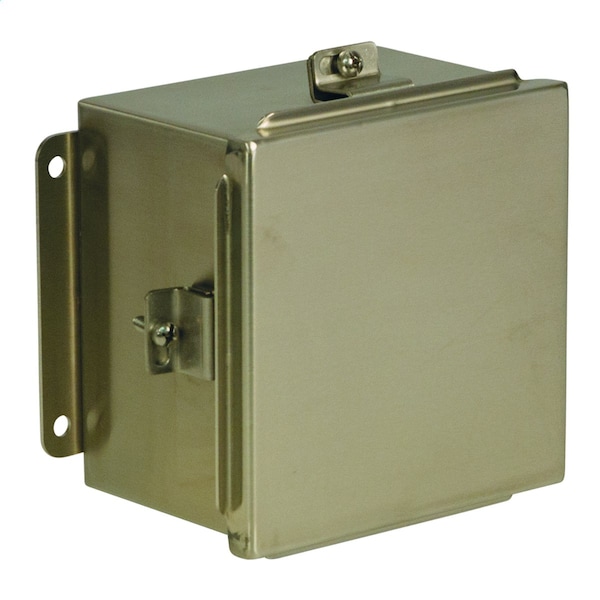

Enclosure Cover, 6 in. H x 13 in. W x 16 in. L, Stainless Steel
| Item | Enclosure Cover |
|---|---|
| Dimension | 6 in. H x 13 in. W x 16 in. L |
| Height | 6 in |
| Width | 13 in |
| Knockouts | No |
| Type | Enclosure |
| Mounting | External Mounting Plates |
| Material | Stainless Steel |
| NEMA Enclosure Type | NEMA 4X |
| Depth | 16 in |
| Length | 16 in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Features | Bodies and doors fabricated from 16 gauge type 316 stainless steel; Continuously welded seams ground smooth, less knockouts or holes; Sealed with poured-in-place polyurethane gasket; External mounting plates, top and bottom of enclosure; Weldnuts are provided to secure optional panel; Stainless steel screws and clamps on four sides of cover assure watertight seal; Grounding provisions provided; Optional panels and terminal kits must be ordered separately |
| Listings | UL, CSA |
| Latches Type | Clamps |
| Cover Type | Lift Off |
| UL Listed | Yes |
| Series | BN4-SSA |
| Number of Doors (Fixed) | 1 |
| Nema Rating | 4X |
| Actual Height | 6.38 in |
| Actual Width | 12.88 in |
| Standard | cULus;IEC |
| Construction | Continuously Welded Seams |
| Cubic Capacity | 1,248 cu in |
| Certified Listed | cULus;IEC |
| Mounting Type | External Mounting Plates |
| Each - Width | 12.88 in |
| Package Quantity | 1 |
