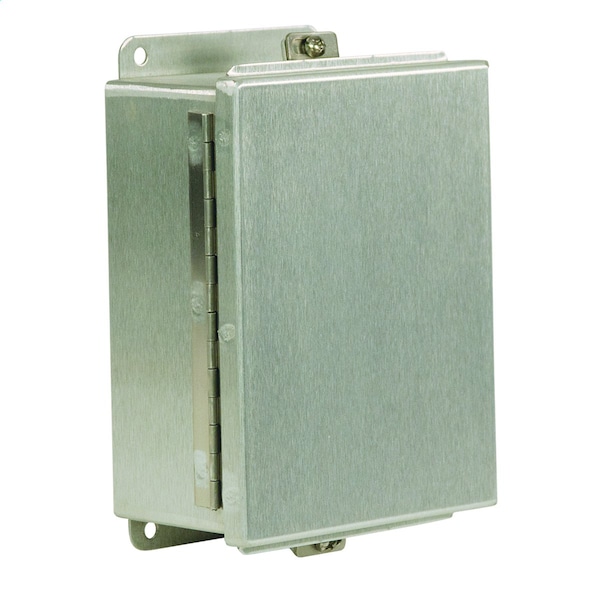

Enclosure Cover, 7 in. H x 15 in. W x 17 in. L, Aluminum
| Item | Enclosure Cover |
|---|---|
| Dimension | 7 in. H x 15 in. W x 17 in. L |
| Height | 7 in |
| Width | 15 in |
| Knockouts | No |
| Type | Enclosure |
| Mounting | External Mounting Plates |
| Material | Aluminum |
| NEMA Enclosure Type | NEMA 4X |
| Length | 17 in |
| Application | Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required. |
| Depth | 17 in |
| Actual Width | 14-1/2 in |
| Series | BN4-CHAL |
| Mounting Type | External Mounting Plates |
| Construction | Continuously Welded Seams |
| Standard | cULus;IEC |
| Each - Width | 14-1/2 in |
| Cover Type | Hinged Cover |
| UL Listed | Yes |
| Latches Type | Clamps |
| Actual Depth | 16-1/2 in |
| Actual Height | 6-1/2 in |
| Certified Listed | cULus;IEC |
| Listings | UL, CSA |
| Nema Rating | 4X |
| Number of Doors (Fixed) | 1 |
| Cubic Capacity | 1,785 cu in |
| Package Quantity | 1 |
