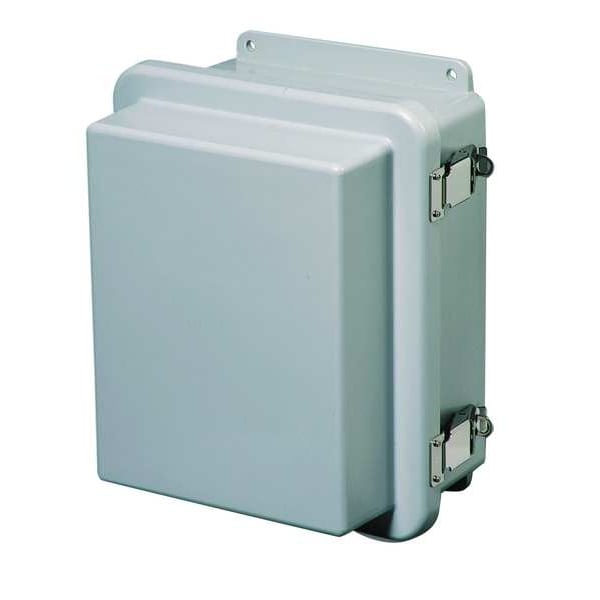

Fiberglass Electrical Enclosures, 11.79 in H, 6.32 in D, 10 in W, NEMA 12, 4X, 6P, Hinged

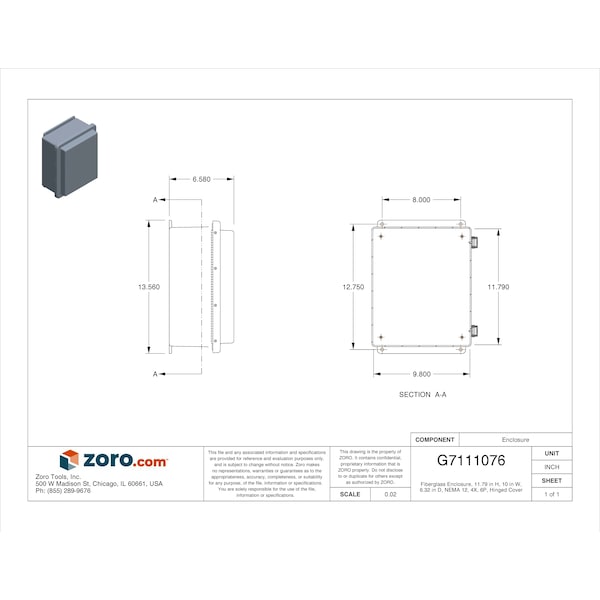

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 10 in |
| Nominal Height | 11.79 in |
| Nominal Depth | 6.32 in |
| Enclosure NEMA Rating | NEMA 12, 4X, 6P |
| Material of Enclosure | Fiberglass |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Gasket | Foam |
| IP Rating | IP66 |
| Usable Opening Depth | 5.88 in |
| Features | External Mounting Flange, Light Weight Watertight |
| Includes | Accessory Hardware Bag |
| Interior Panel | 52XC53, 52XC54, 52XC55 |
| Series | RJ-HPL |
| Standards | cULus, UL Listed |
| Enclosure Material | Fiberglass |
| Cover Style | Solid |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Submersible |
| Gasket Material | Polyurethane |
| Cover Closure Type | Hinged |
| Compatible Panel Model Number | HW-MP1210A, HW-MP1210CS, HW-MP1210FG, HW-MP1210SS |
| NEMA Enclosure Rating | 12, 4X, 3R, 6P, 1 |
| Package Quantity | 1 |
