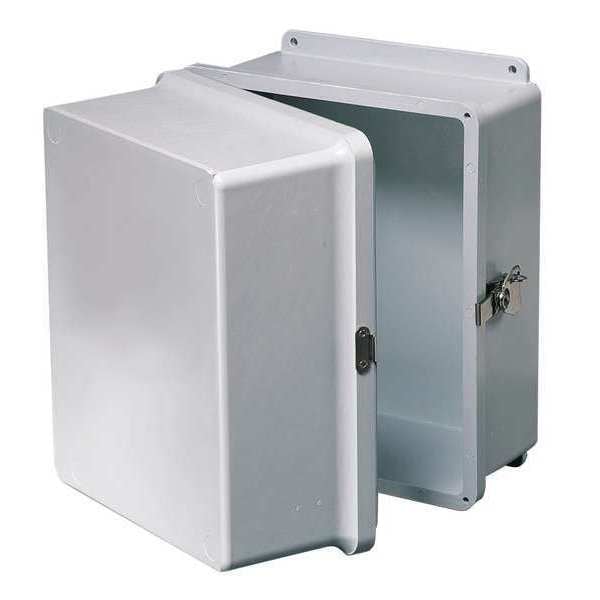

Fiberglass Electrical Enclosures, 15.60 in H, 11.82 in D, 14 in W, NEMA 4X, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 14 in |
| Nominal Height | 15.6 in |
| Nominal Depth | 11.82 in |
| Enclosure NEMA Rating | NEMA 4X, 12 |
| Material of Enclosure | Fiberglass |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 11.88 in |
| Enclosure Cover Features | Opaque |
| Series | J-SSH |
| Includes | Accessory Hardware Bag |
| Standards | cULus, UL Listed |
| Gasket | Foam |
| Features | External Mounting Flange, Light Weight Watertight |
| Interior Panel | 52XC59, 52XC60, 52XC61 |
| Enclosure Material | Fiberglass |
| Compatible Panel Model Number | HW-MP1614A, HW-MP1614CS, HW-MP1614FG, HW-MP1614SS |
| Gasket Material | Polyurethane |
| Environment - MERCH | Submersible |
| NEMA Enclosure Rating | 12, 4X, 3R, 6P, 1 |
| Cover Style | Solid |
| Cover Closure Type | Screw On |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
