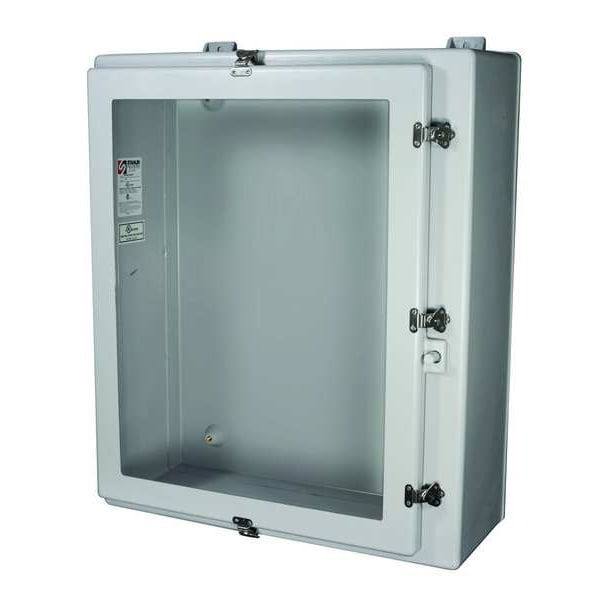

Fiberglass Electrical Enclosures, 24.05 in H, 9-1/4 in D, 20 in W, NEMA 4X, 12, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24.05 in |
| Nominal Depth | 9-1/4 in |
| Enclosure NEMA Rating | NEMA 4X, 12 |
| Material of Enclosure | Fiberglass |
| Closure Method | Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Solid / Clear Cover | Clear |
| Gasket | Foam |
| IP Rating | IP66 |
| Series | NW-HWT |
| Usable Opening Depth | 7.88 in |
| Includes | Accessory Hardware Bag |
| Standards | cULus, UL Listed |
| Enclosure Cover Features | Clear |
| Features | External Mounting Feet, Light Weight Watertight |
| Interior Panel | 52XD95, 52XD96 |
| Enclosure Material | Fiberglass |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Cover Closure Type | Hinged |
| Cover Style | Clear |
| Compatible Panel Model Number | HW-WM2420A, HW-WM2420CS |
| Gasket Material | Polyurethane |
| NEMA Enclosure Rating | 12, 4X, 3R, 1, 3 |
| Package Quantity | 1 |
