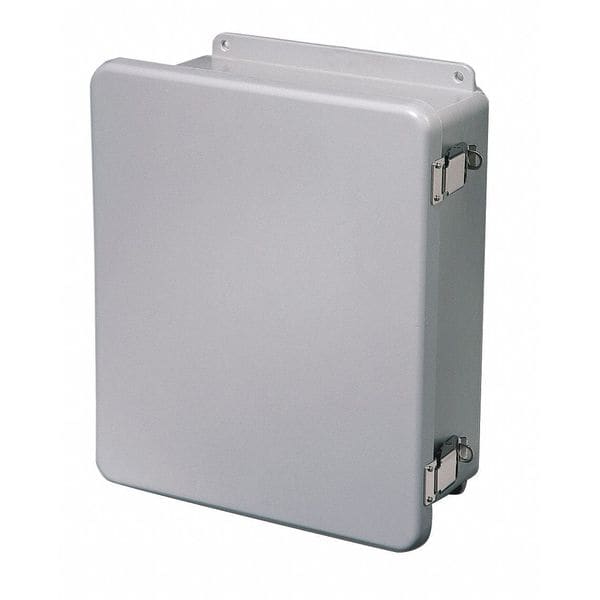

Fiberglass Electrical Enclosures, 7.73 in H, 4.45 in D, 6 in W, NEMA 1, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 7.73 in |
| Nominal Depth | 4.45 in |
| Enclosure NEMA Rating | NEMA 1 |
| Material of Enclosure | Fiberglass |
| Closure Method | Hasp |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Enclosure Cover Features | Opaque |
| Features | External Mounting Flange, Light Weight Watertight |
| Includes | Accessory Hardware Bag |
| Usable Opening Depth | 3.88 in |
| Interior Panel | 52XC72, 52XC73, 52XC74 |
| Gasket | Foam |
| Standards | CSA Certified, cUL, IEC, REACH and RoHS Compliant, UL Listed |
| Series | J-FHPL |
| Enclosure Material | Fiberglass |
| Includes Knockouts | Knockouts Not Included |
| Cover Closure Type | Hinged |
| NEMA Enclosure Rating | 1 |
| Cover Style | Solid |
| Environment - MERCH | Indoor |
| Gasket Material | Foam |
| Compatible Panel Model Number | HW-MP806A, HW-MP806CS, HW-MP806FG |
| Package Quantity | 1 |
