Fiberglass Electrical Enclosures, 9.73 in H, 3.98 in D, 8 in W, NEMA 4X, 6P, 12, Hinged

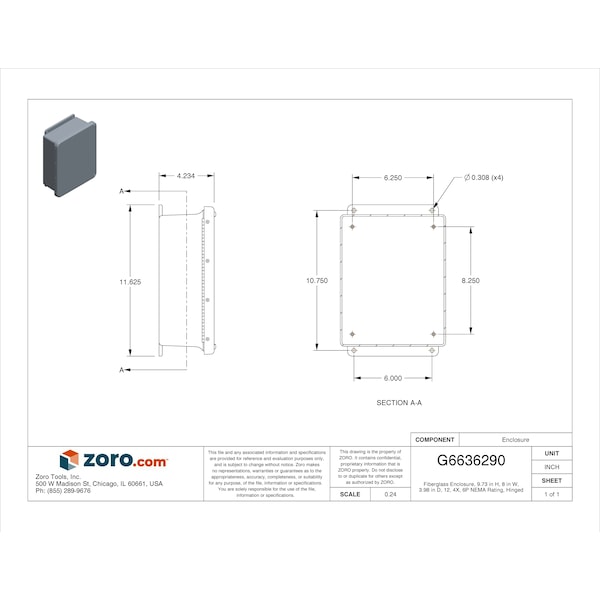

| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 9.73 in |
| Nominal Depth | 3.98 in |
| Enclosure NEMA Rating | NEMA 4X, 6P, 12 |
| Material of Enclosure | Fiberglass |
| Closure Method | Screws |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | J-HW |
| Gasket | Foam |
| Enclosure Cover Features | Opaque |
| Standards | cULus, UL Listed |
| Interior Panel | 52XC50, 52XC51, 52XC52 |
| Includes | Accessory Hardware Bag |
| Usable Opening Depth | 3.88 in |
| Features | External Mounting Flange, Light Weight Watertight |
| IP Rating | IP66 |
| Enclosure Material | Fiberglass |
| Gasket Material | Polyurethane |
| Compatible Panel Model Number | HW-MP1008A, HW-MP1008CS, HW-MP1008FG, HW-MP1008SS |
| Cover Style | Solid |
| NEMA Enclosure Rating | 12, 4X, 3R, 6P, 1 |
| Environment - MERCH | Submersible |
| Cover Closure Type | Hinged |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
