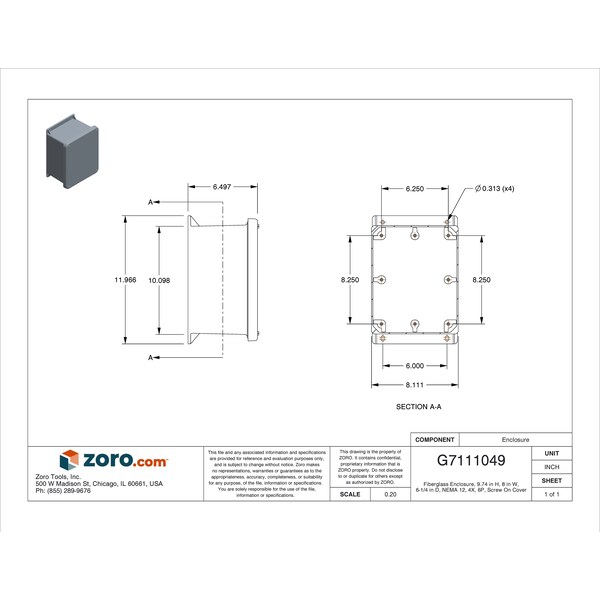

Fiberglass Electrical Enclosures, 9.74 in H, 6-1/4 in D, 8 in W, NEMA 12, 4X, 6P, Screw On
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 9.74 in |
| Nominal Depth | 6-1/4 in |
| Enclosure NEMA Rating | NEMA 12, 4X, 6P |
| Material of Enclosure | Fiberglass |
| Closure Method | Screws |
| Enclosure Cover Type | Screw On |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Usable Opening Depth | 5.88 in |
| Includes | Accessory Hardware Bag |
| Interior Panel | 52XC50, 52XC51, 52XC52 |
| Standards | cULus, UL Listed |
| Gasket | Foam |
| Features | External Mounting Flange, Light Weight Watertight |
| Series | J-W |
| IP Rating | IP66 |
| Enclosure Material | Fiberglass |
| Cover Style | Solid |
| Cover Closure Type | Screw On |
| NEMA Enclosure Rating | 12, 4X, 3R, 1 |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | HW-MP1008A, HW-MP1008CS, HW-MP1008FG, HW-MP1008SS |
| Gasket Material | Polyurethane |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
