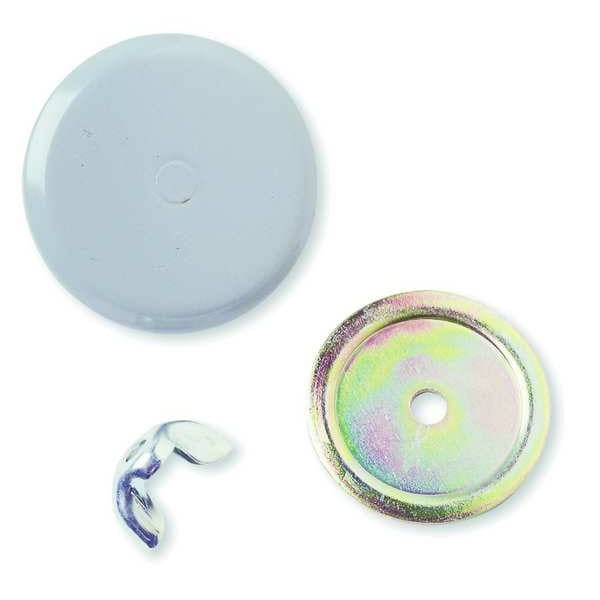

Hole Seal, 1.5 In Hole dia., Steel
| Item | Hole Seal |
|---|---|
| Length | 3 in |
| Finish | Painted |
| Width | 3-1/2 in |
| Height | 1 in |
| Color | Gray |
| Includes | Oil Resistant Gasket, Quick Wing Nut |
| Gasket | Oiltight |
| Material | Carbon Steel |
| Designed To | Seal Unused Pushbutton or Conduit Holes |
| For Use With | Steel Enclosures |
| Conduit Size | 1-1/2 in |
| Hole Dia. | 2 in |
| NEMA Enclosure Type | 12, 4 |
| Material type | Carbon Steel |
| Size | 3 in x 3.5 in x 1 in |
| Each - Width | 3-1/2 in |
| Depth | 0.7 in |
| Accessory Type | Hole Seal |
| Special Features | 1-1/2-inch conduit holes. Quick wing nut. Oil resistant gasket. ANSI-61 gray smooth finish. |
| Application | Designed to seal extra push-button holes, conduit openings, and knockout openings from dirt, dust, oil and water. |
| Dimensions | 3 in x 3-1/2 in x 1 in |
| Type | Accessory |
| Industry Standard(s) | cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791 |
| Finish Type | Smooth |
| Cubic Capacity | 2.45 cu in |
| Standard | cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791 |
| Features | Quick wing nut; Oil resistant gasket; ANSI 61 gray polyester powder; Maintains UL rating of the enclosure when like materials are used |
| Conduit Hole Size | 1-1/2 in |
| For Hole Type | Conduit, Push Buttons, Knockouts |
| For Hole Diameter - Maximum | 1-1/2 in |
| Oiltight Seal | Oiltight |
| NEMA Enclosure Rating | 1, 12, 13, 4, 4X |
| Package Quantity | 1 |
