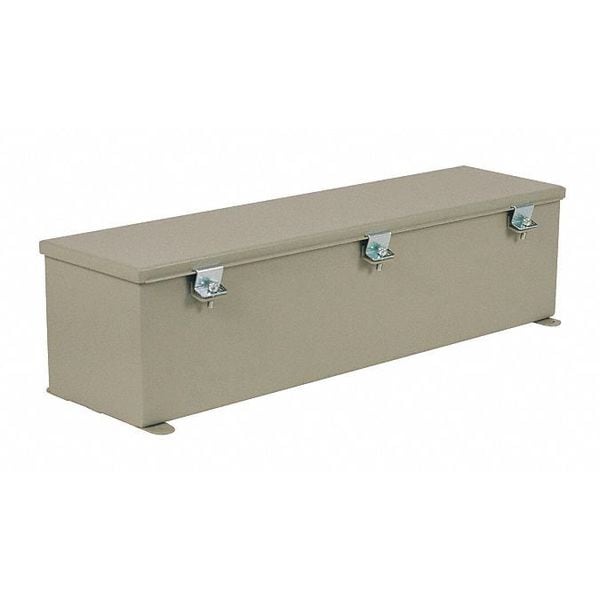

Nema 12 Hinged Cover Wiring Trough, T-Ch, 4, IP66 Rating, Carbon Steel, Polyester Powder
| Item | Nema 12 Hinged Cover Wiring Trough, T-Ch |
|---|---|
| Finish | Polyester Powder |
| Height | 12 in |
| Width | 12 in |
| NEMA Rating | 4, IP66 |
| Cover Type | Hinged Cover |
| Material | Carbon Steel |
| Application | Designed to protect from dirt, dust, oil, and water. |
| Accessory Type | Nema 12 Hinged Cover Wiring Trough, T-Ch |
| Features | Trough and cover fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Oil resistant gasket and adhesive are provided. Trough comes complete with easy to operate external clamps and a continuous hinge. External mounting feet are provided. |
| Depth | 24 in |
| Color | Ansi-61 Gray Smooth |
| Knockouts | No |
| Actual Length | 24 in |
| UL Listed | Yes |
| Standard | cULus |
| Type | Trough |
| Finish Type | Polyester Powder |
| Listings | CSA, UL |
| Each - Width | 12 in |
| Certified Listed | cULus |
| Package Quantity | 1 |
