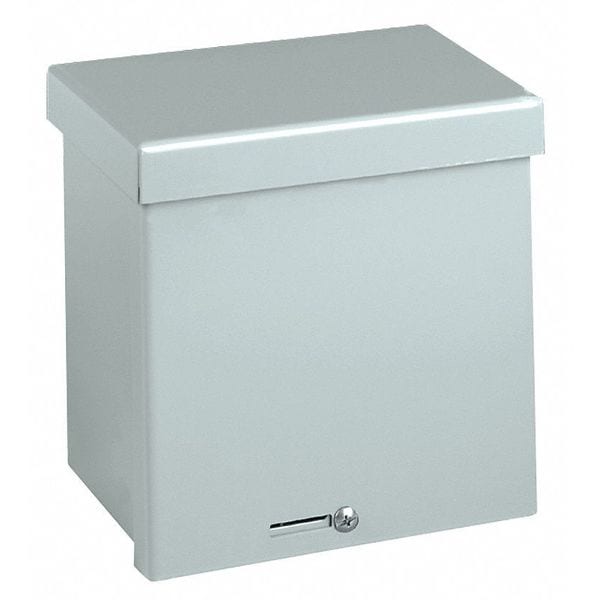

Padlockable Hasp Electrical Enclosures, 10 in H, 4 in D, 8 in W, 3R, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 10 in |
| Nominal Depth | 4 in |
| NEMA Enclosure Rating | 3R |
| Enclosure Material | Steel |
| Closure Method | Hasp |
| Cover Closure Type | Screw On |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Galvanized |
| Mounting | Wall |
| Cover Style | Solid |
| Material of Enclosure | Carbon Steel |
| Usable Opening Depth | 3.88 in |
| Includes | Screws |
| Standards | CSA Certified, cULus, UL Listed |
| Series | RSC-G |
| Enclosure Cover Features | Padlockable Handle |
| Enclosure Cover Type | Screw On |
| Enclosure NEMA Rating | NEMA 3R |
| Metal Gauge | 16 ga |
| Solid / Clear Cover | Solid |
| Features | Bodies and doors fabricated from 16 gauge type 304 stainless steel; Continuously welded seams ground smooth, less knockouts or holes; Sealed with poured-in-place polyurenthane gasket; External mounting plates, top and bottom of enclosure; Stainless steel screws and clamps on four sides of cover assure watertight seal; Grounding provisions provided; Optional panels and terminak kits must be ordered separately |
| Weight | 7.2 lb. |
| Capacity | 320 cu in |
| Application | Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water. |
| Environment - MERCH | Weather Resistant |
| Body Material Thickness | 16 ga |
| Includes Knockouts | Knockouts Included |
| Gasket Material | Polyurethane |
| Cover Material Thickness | 16 ga |
| Package Quantity | 1 |
