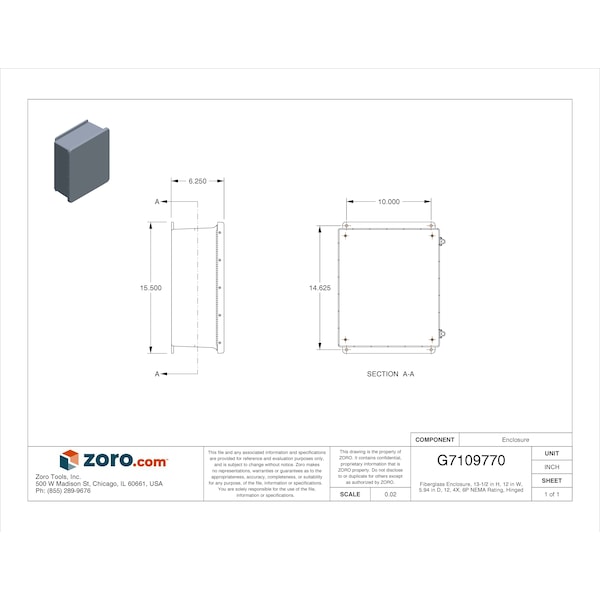

Padlockable Hasp Electrical Enclosures, 13-1/2 in H, 5.94 in D, 12 in W, 1, 12, 3R, 4X, 6P
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 12 in |
| Nominal Height | 13-1/2 in |
| Nominal Depth | 5.94 in |
| NEMA Enclosure Rating | 12, 4X, 3R, 6P, 1 |
| Enclosure Material | Fiberglass |
| Closure Method | Hasp |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Light Gray |
| Finish | Matte |
| Mounting | Wall |
| Cover Style | Solid |
| Enclosure Cover Type | Hinged |
| Series | J-HPL |
| Material of Enclosure | Fiberglass |
| Gasket | Foam |
| Enclosure Cover Features | Opaque |
| Enclosure NEMA Rating | NEMA 4X, 6P, 12 |
| Includes | Accessory Hardware Bag |
| Interior Panel | 52XC56, 52XC57, 52XC58 |
| Usable Opening Depth | 5.88 in |
| IP Rating | IP66 |
| Standards | cULus, UL Listed |
| Solid / Clear Cover | Solid |
| Features | 5/16 in dia Mounting Holes, External Mounting Flange, Light Weight Watertight |
| Compatible Panel Model Number | HW-MP1412A, HW-MP1412CS, HW-MP1412FG, HW-MP1412SS |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Submersible |
| Gasket Material | Polyurethane |
| Package Quantity | 1 |
