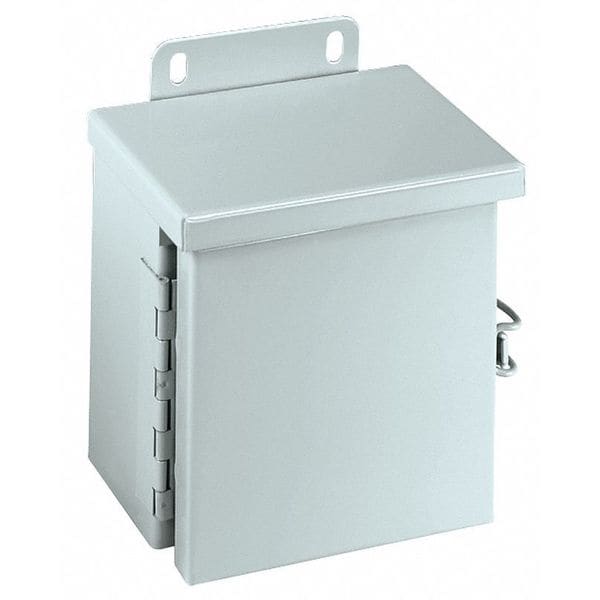

Padlockable Hasp Electrical Enclosures, 8 in H, 4 in D, 8 in W, 3R, Steel
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| NEMA Enclosure Rating | 3R |
| Enclosure Material | Steel |
| Closure Method | Hasp |
| Cover Closure Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Cover Style | Solid |
| Usable Opening Depth | 3.88 in |
| Standards | CSA Certified, cULus, UL Listed |
| Enclosure NEMA Rating | NEMA 3R |
| Features | External Mounting Plates |
| Metal Gauge | 16 ga |
| Enclosure Cover Type | Hinged |
| Series | RHC |
| Material of Enclosure | Carbon Steel |
| Interior Panel | 6C754 |
| Solid / Clear Cover | Solid |
| Cover Type | Hinged Cover |
| Capacity | 256 cu in |
| Weight | 6 lb. |
| Application | Designed for use as wiring boxes and junction boxes. Provides protection in outdoor installations against rain, sleet, and snow, or indoors against dripping water. |
| Cable Entry | Knock Outs |
| Compatible Panel Model Number | N1P0808, N1P0808G, N1P0808PP |
| Body Material Thickness | 16 ga |
| Cover Material Thickness | 16 ga |
| Environment - MERCH | Weather Resistant |
| Includes Knockouts | Knockouts Included |
| Package Quantity | 1 |
