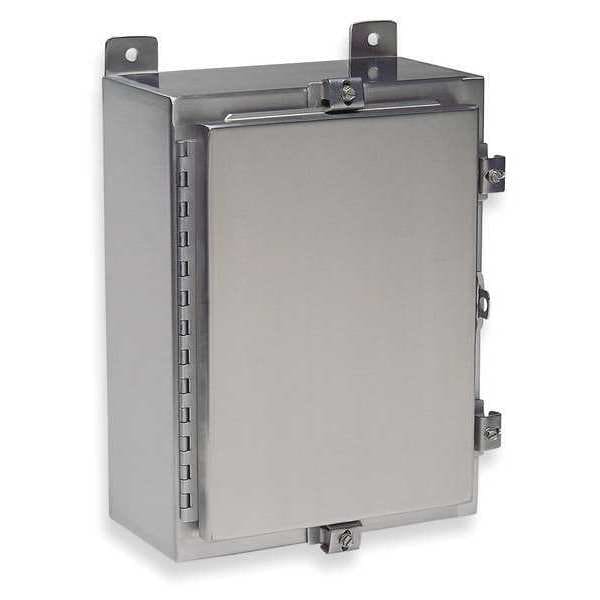

Padlockable Hasp with Clamps Electrical Enclosures, 16 in H, 8 in D, 12 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 16 in |
| Nominal Depth | 8 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | Hasp |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 2W827 |
| Solid / Clear Cover | Solid |
| IP Rating | IP66 |
| Metal Gauge | 14 ga |
| Material of Enclosure | 304 Stainless Steel |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Series | SSN4 |
| Usable Opening Depth | 7.88 in |
| Enclosure Cover Type | Hinged |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure Cover Features | Padlockable |
| Features | External Mounting Feet |
| Weight | 24 lb. |
| Capacity | 1,536 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Compatible Panel Model Number | NP1612, NP1612G, NP1612SS |
| Body Material Thickness | 14 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
