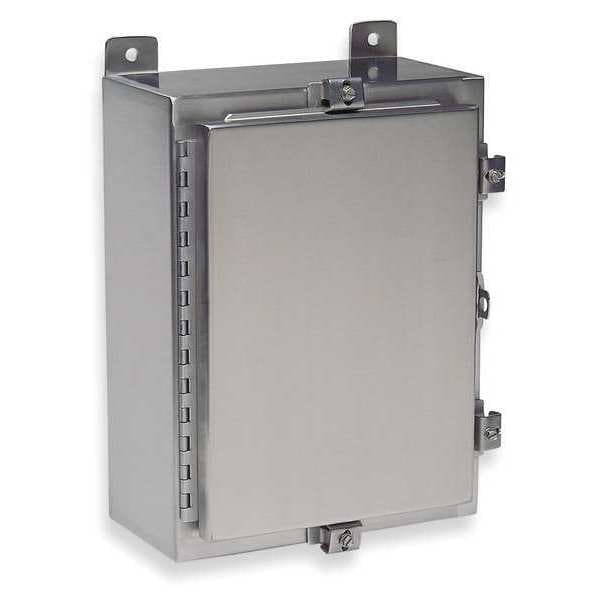

Padlockable Hasp with Clamps Electrical Enclosures, 24 in H, 6 in D, 20 in W, 12, 13, 3R, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Depth | 6 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X, 3R |
| Enclosure Material | Stainless Steel |
| Closure Method | Hasp |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Smooth Grained |
| Mounting | Wall |
| Cover Style | Solid |
| Metal Gauge | 14 ga |
| IP Rating | IP66 |
| Material of Enclosure | 304 Stainless Steel |
| Features | External Mounting Feet |
| Enclosure Cover Type | Hinged |
| Series | SSN4 |
| Usable Opening Depth | 5.88 in |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 6XC19 |
| Enclosure Cover Features | Padlockable |
| Enclosure NEMA Rating | NEMA 4X |
| Solid / Clear Cover | Solid |
| Weight | 41 lb. |
| Capacity | 2,880 cu in |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or containments. |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Compatible Panel Model Number | NP2420, NP2420G, NP2420SS |
| Body Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Package Quantity | 1 |
