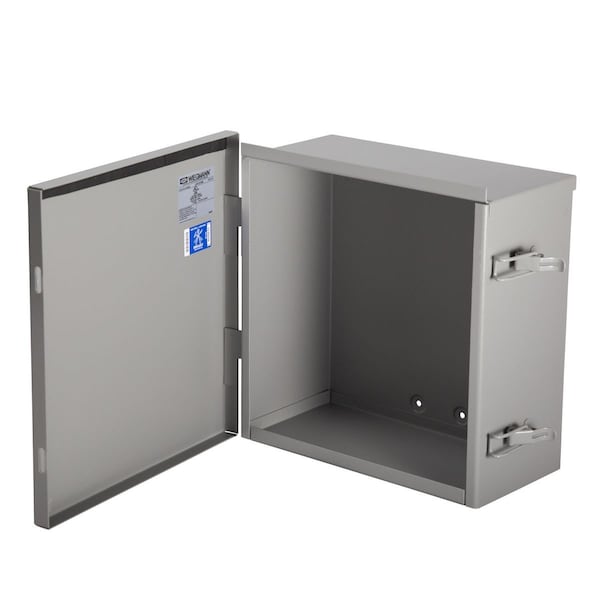

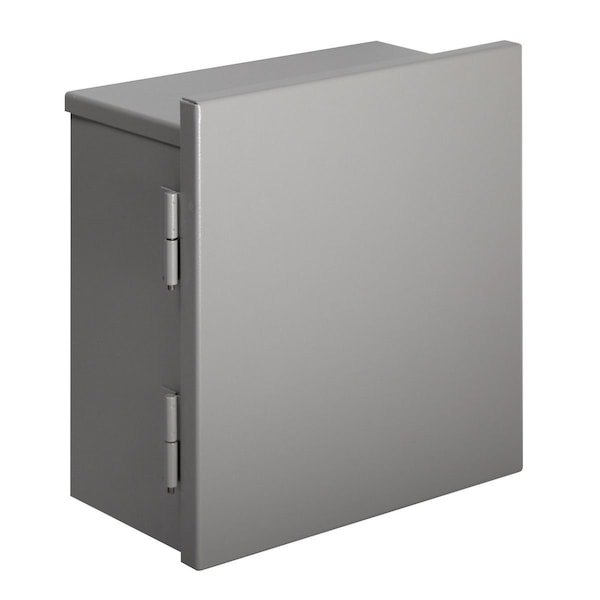

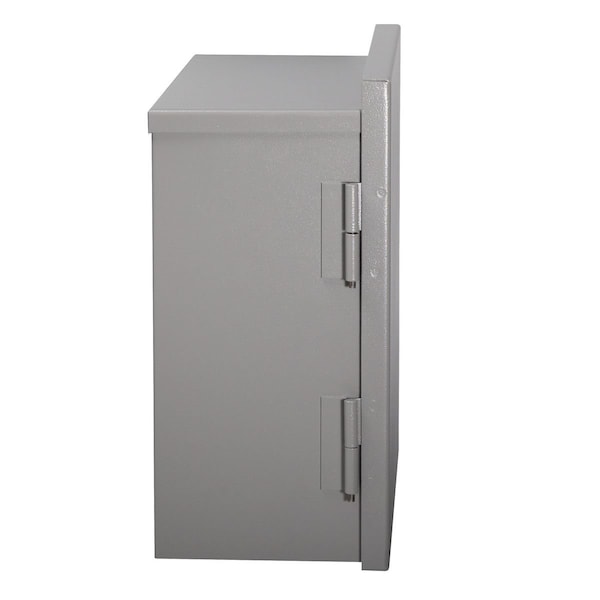

Padlockable Latch Electrical Enclosures, 30 in H, 8 in D, 24 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 24 in |
| Nominal Height | 30 in |
| Nominal Depth | 8 in |
| Closure Method | Latch |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Application | Designed for use as wiring boxes and junction boxes. Provides protection in;outdoor installations against rain, sleet, and snow, or indoors against dripping water. |
| Features | Bodies and doors are fabricated from carbon steel; Integrated drip cap; Door is hinged on the left side with lift-off hinges; No knockouts; Mounting holes on the back of the enclosure; Doors are securely fastened with a padlockable draw latch; Grounding provisions are provided; ANSI-61 gray polyester powder inside and out; Optional back panels are painted with while polyester powder |
| Certified Listed | UL Listed;CSA Listed |
| Enclosure NEMA Rating | NEMA 3R |
| Material of Enclosure | Carbon Steel |
| Enclosure Cover Type | Hinged |
| Solid / Clear Cover | Solid |
| Package Quantity | 1 |
