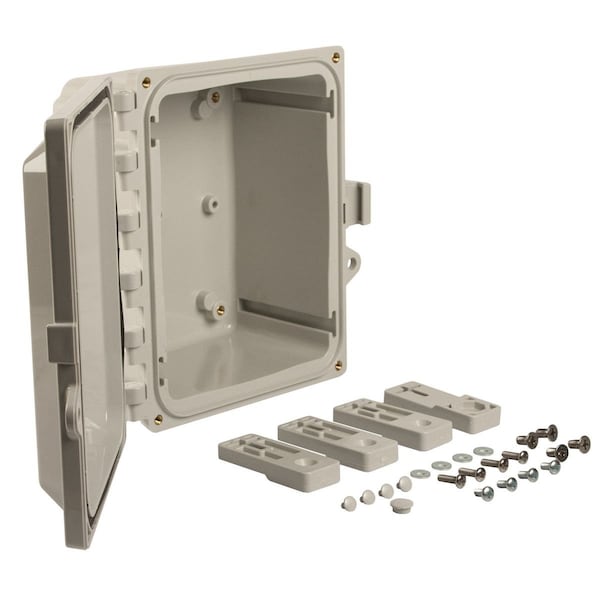

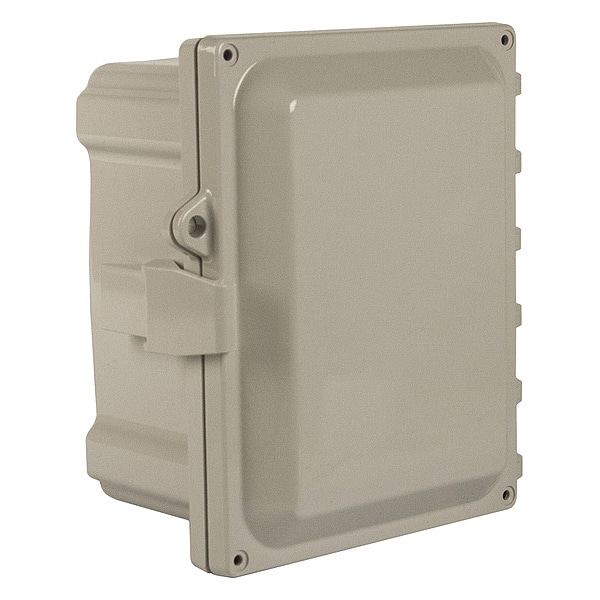

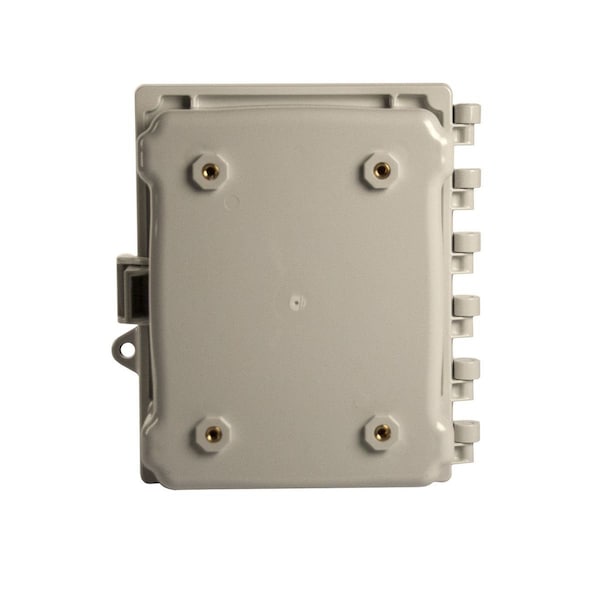

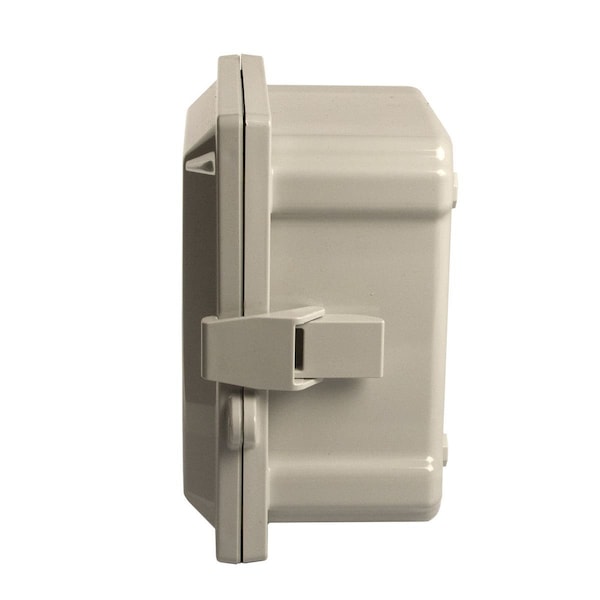

Polycarbonate Electrical Enclosures, 8 in H, 4 in D, 8 in W, NEMA 4X, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 8 in |
| Nominal Height | 8 in |
| Nominal Depth | 4 in |
| Enclosure NEMA Rating | NEMA 4X |
| Material of Enclosure | Polycarbonate |
| Closure Method | Quick Release Padlock Latch |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Non-Metallic |
| Color | Opaque |
| Finish | Natural |
| Mounting | Wall |
| Solid / Clear Cover | Solid |
| Series | Polycarbonate |
| Features | Constructed of Polycarbonate material; Continuous hinge with quick-release padlockable latches; Poured seamless gasket provides a water-tight and dust-tight seal |
| Standards | cULus, UL Listed |
| Enclosure Material | Polycarbonate |
| IP Rating | IP66, IP68 |
| Capacity | 256 cu in |
| Includes Knockouts | Knockouts Not Included |
| NEMA Enclosure Rating | 12, 4, 4X, 3R, 6P, 1 |
| Environment - MERCH | Submersible |
| Gasket Material | Foam |
| Compatible Panel Model Number | HW-MP806A, HW-P808SPK |
| Cover Closure Type | Hinged |
| Cover Style | Solid |
| Package Quantity | 1 |
