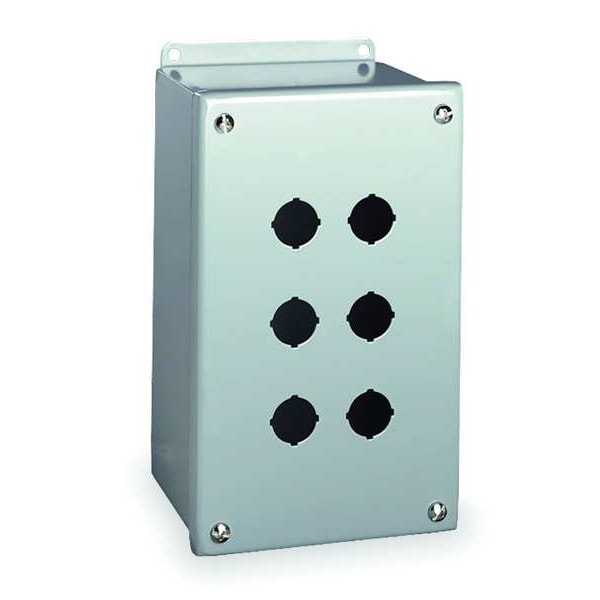

Caja de botón pulsador, 30mm, 6 agujeros, acero
| Number of Columns | 2 |
|---|---|
| Item | Push Button Enclosure |
| Hole Size | 30 mm |
| Material | Carbon Steel |
| Conduit Size | No Conduit Entrance Holes Provided |
| Number of Holes | 6 |
| NEMA Rating | 12, 13 |
| Dimensions | 9-1/2 in H x 8-1/2 in W x 4.81 in D |
| Height | 9-1/2 in |
| Width | 8-1/2 in |
| Depth | 4.81 in |
| Color | Gray |
| Mounting Style | External Plates |
| Standards | cULus, UL Listed |
| Type | Extra Deep |
| Includes | Captive Cover Screws, Closed Cell Oil Resistant Gasket |
| Features | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" pushbutton holes accept all brands of oil-tight push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided. |
| Application | Designed to hold 30.5mm oil-tight pushbuttons, switches, and pilot lights. Provide protection against dirt, dust, oil, and water. Extra deep design accommodates additional contact blocks for pushbuttons. |
| Mounting | External Mounting Plates |
| Construction | Continuously Welded Seams |
| Actual Depth | 9-1/2 in |
| Standard | cULus |
| Series | PBXD |
| Actual Height | 9-1/2 in |
| Cover Type | Pushbutton;Screw |
| Cubic Capacity | 600 cu in |
| Listings | UL, CSA |
| Finish Type | Polyester Powder |
| UL Listed | Yes |
| Certified Listed | cULus |
| Mounting Type | External Mounting Plates |
| Actual Width | 6-1/4 in |
| Overall Width | 6-5/8 in |
| Overall Height | 9-13/16 in |
| NEMA Enclosure Rating | 4 |
| Overall Depth | 5-1/8 in |
| Compatible Conduit Size - Maximum | No Conduit Entrance Holes Provided |
| Panel Cutout Diameter | 30 mm |
| Package Quantity | 1 |
