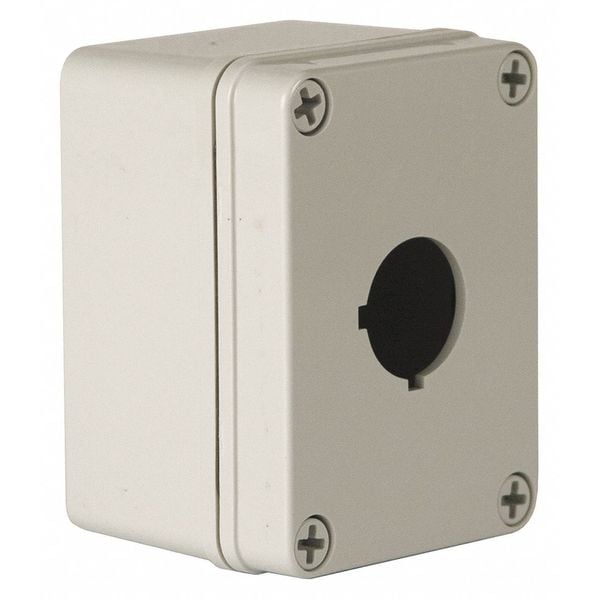

Recinto de botón pulsador, 4.34" H, Orificio de 22mm. Mantén tus dispositivos seguros y protegidos con este recinto resistente y duradero.
| Item | Push Button Enclosure |
|---|---|
| Number of Columns | 1 |
| Hole Size | 22 mm |
| Material | Polycarbonate |
| Conduit Size | No Conduit Entrance Holes Provided |
| Number of Holes | 1 |
| Dimensions | 4.34 in H x 3.16 in W x 2.79 in D |
| NEMA Rating | 4x |
| Height | 4.34 in |
| Width | 3.16 in |
| Depth | 2.79 in |
| Color | Gray |
| For Use With | All Standard Brands of Push Buttons, Switches and Pilot Lights |
| Type | Miniature |
| Contact Block Depth | 2.51 in |
| Mounting Style | Wall |
| Standards | cULus, UL Listed |

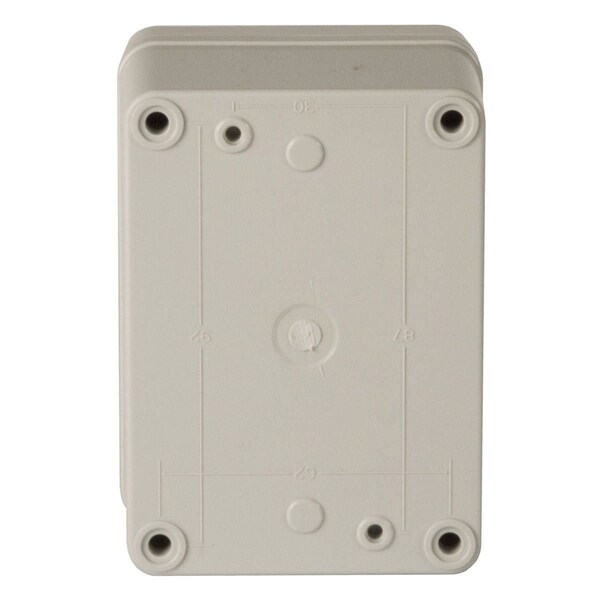

| Features | Constructed of Polycarbonate material; Lift-off cover with four polycarbonate screws; Single 22mm pushbutton hole; Poured seamless gasket provides a water-tight and dust-tight seal; Mounting wells are located on the back of the enclosure |
| Mounting Type | Wall Mount |
| UL Listed | Yes |
| Mounting | Wall Mount |
| Certified Listed | cULus |
| Standard | cULus |
| Cover Type | Screw Cover |
| Series | Polycarbonate |
| Pushbutton Number of Holes | 1 |
| Pushbutton Size | 22 MM |
| Overall Width | 3-3/16 in |
| Overall Height | 4-5/16 in |
| Compatible Conduit Size - Maximum | No Conduit Entrance Holes Provided |
| Overall Depth | 2-13/16 in |
| Panel Cutout Diameter | 22 mm |
| Compatible Contact Block Depth | 2.51 in |
| NEMA Enclosure Rating | 4X |
| Package Quantity | 1 |
