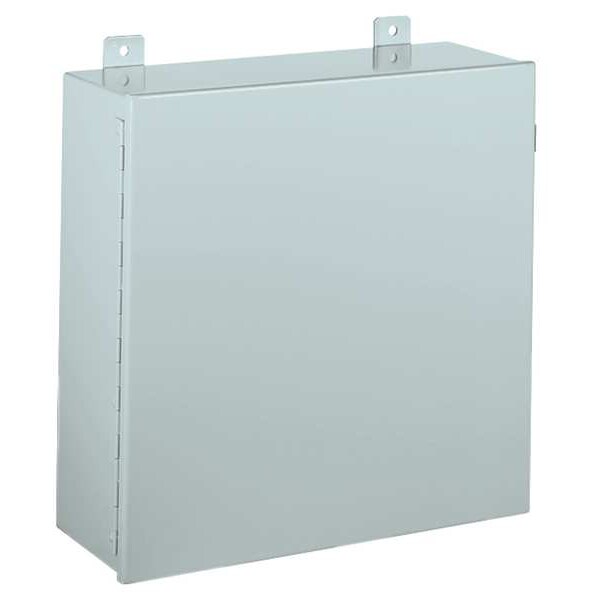

Screw Clamps Electrical Enclosures, 36 in H, 9 in D, 30 in W, 12, 13, Steel
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 30 in |
| Nominal Height | 36 in |
| Nominal Depth | 9 in |
| NEMA Enclosure Rating | 12, 13 |
| Enclosure Material | Steel |
| Closure Method | Clamps |
| Cover Closure Type | Hinged |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Cover Style | Solid |
| Material of Enclosure | Carbon Steel |
| Features | External Mounting Feet |
| Usable Opening Depth | 8.88 in |
| Interior Panel | 3A933 |
| Metal Gauge | 14 ga |
| Enclosure Cover Type | Hinged |
| Enclosure NEMA Rating | NEMA 12 |
| Enclosure Cover Features | Screwdown Clamps |
| Series | B-CH |
| Gasket | Seamless Polyurethane Poured in Place |
| Solid / Clear Cover | Solid |
| Standards | CSA Certified, cULus, UL Listed |
| Weight | 82 lb. |
| Application | Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. |
| Environment - MERCH | Dust Tight |
| Compatible Panel Model Number | NP3630, NP3630G |
| Body Material Thickness | 14 ga |
| Cover Material Thickness | 14 ga |
| Includes Knockouts | Knockouts Not Included |
| Gasket Material | Polyurethane |
| Package Quantity | 1 |
