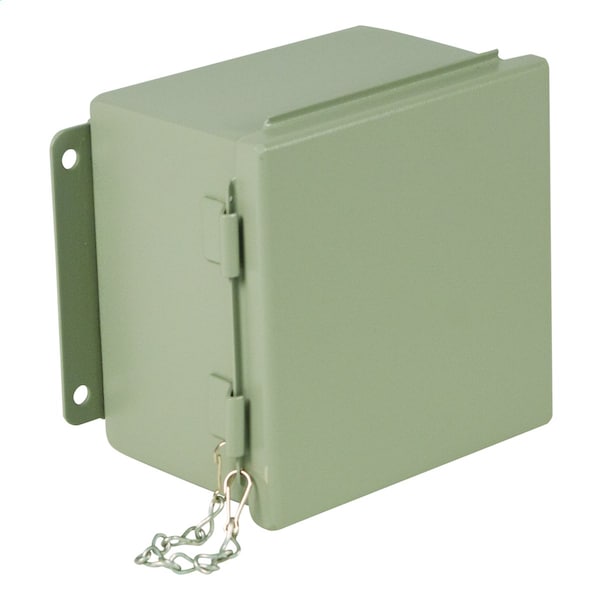

Screw Clamps Electrical Enclosures, 8 in H, 6 in D, 6 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 6 in |
| Nominal Height | 8 in |
| Nominal Depth | 6 in |
| Closure Method | Clamps |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Mounting | Wall |
| Standards | UL, CSA |
| Enclosure Cover Type | Lift Off |
| Enclosure NEMA Rating | NEMA 12 |
| Features | Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. External screw clamps are quick and easy to operate. Lift off cover design. Chain holds cover to box when cover is removed. Grounding provisions provided. |
| Material of Enclosure | Carbon Steel |
| Application | The B Series JIC box is a standard of the automotive industry but has wide applications in other industries. The box incorporates a chain secured lift-off cover and is designed to safeguard components against dust, dirt, oil and water. |
| Weight | 5.67 lb. |
| Capacity | 288 cu in |
| Package Quantity | 1 |
