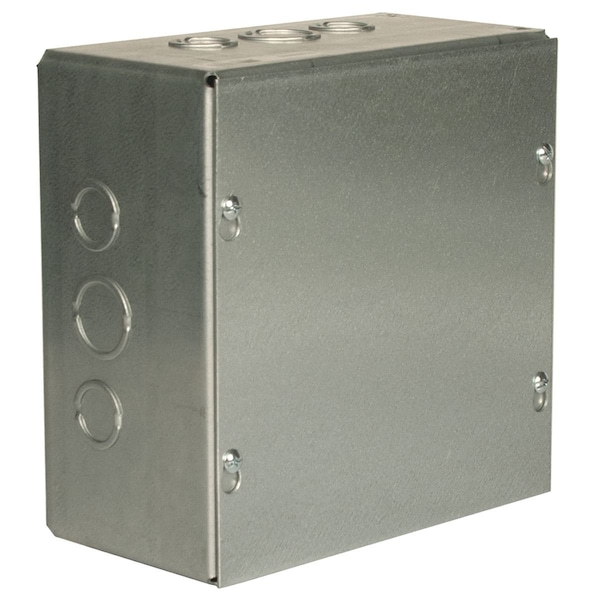

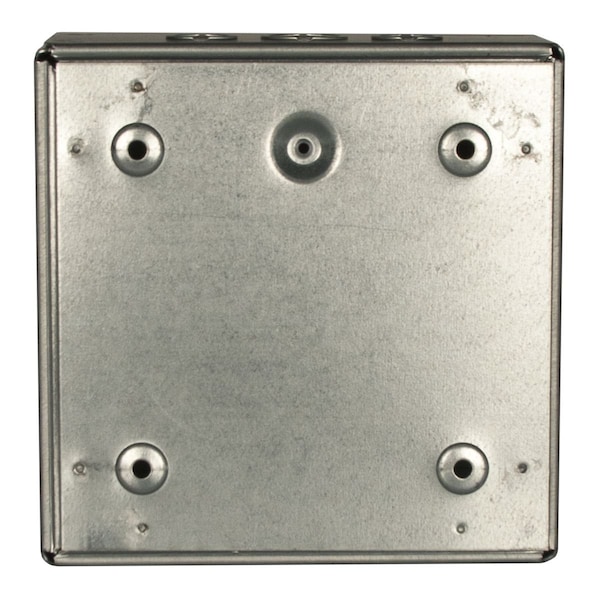

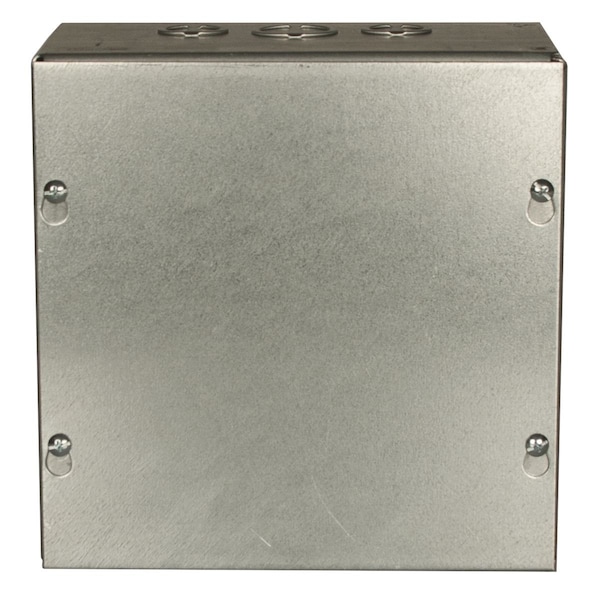

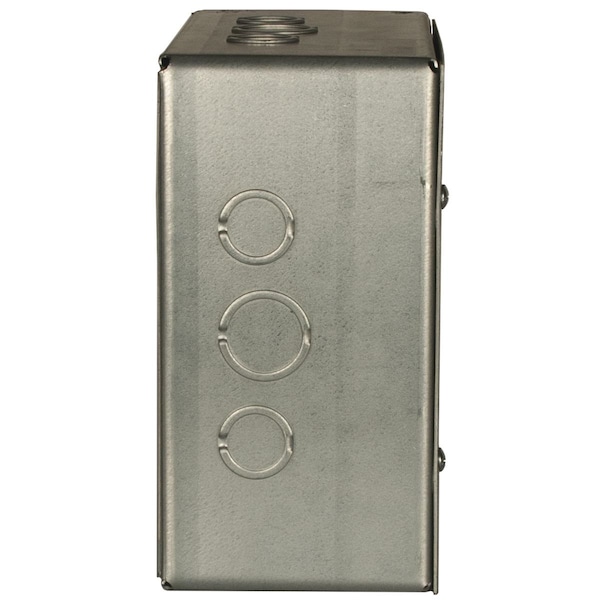

Screw Cover, 16 in. H x 12 in. W x 8 in. L, Carbon Steel
| Item | Screw Cover |
|---|---|
| Dimension | 16 in. H x 12 in. W x 8 in. L |
| Height | 16 in |
| Width | 12 in |
| Knockouts | Yes |
| Type | Enclosure |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Finish | Galvanized |
| NEMA Enclosure Type | NEMA 1 |
| Length | 8 in |
| Depth | 8 in |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Features | Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides. |
| UL Listed | Yes |
| Certified Listed | cULus |
| Actual Height | 16-1/8 in |
| Nema Rating | 1 |
| Actual Width | 12-1/8 in |
| Cubic Capacity | 1,536 cu in |
| Finish Type | Galvanized |
| Cover Type | Screw Cover |
| Each - Width | 12 in |
| Mounting Type | Mounting Holes |
| Listings | UL, CSA |
| Construction | Spot Welded |
| Cable Entry | Knock Outs |
| Standard | cULus |
| Package Quantity | 1 |
