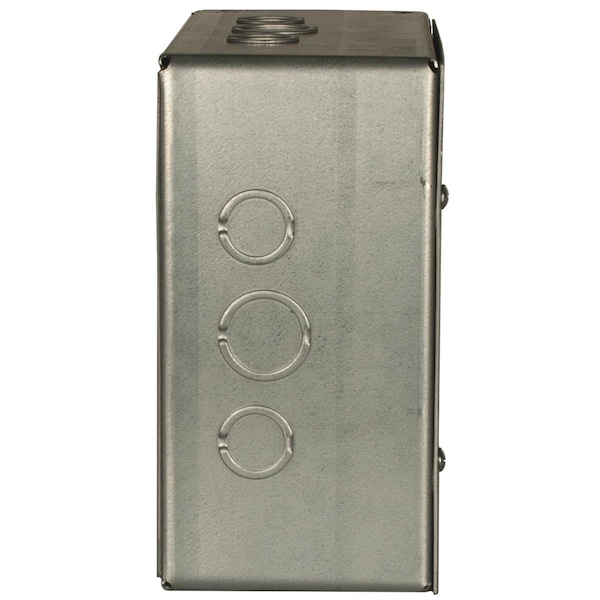

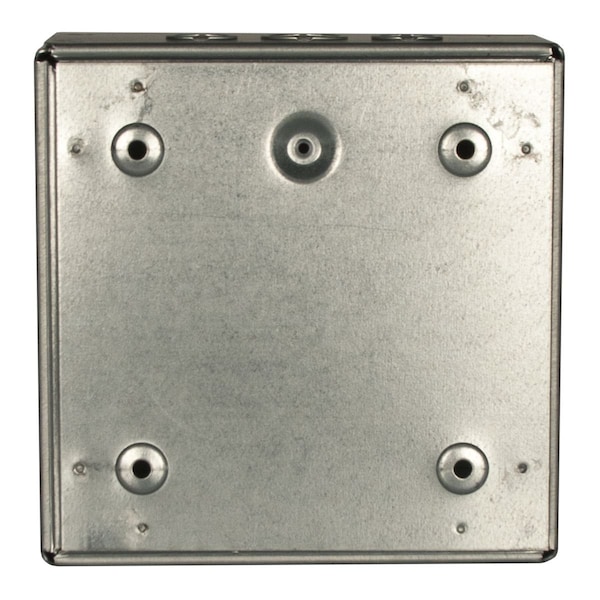

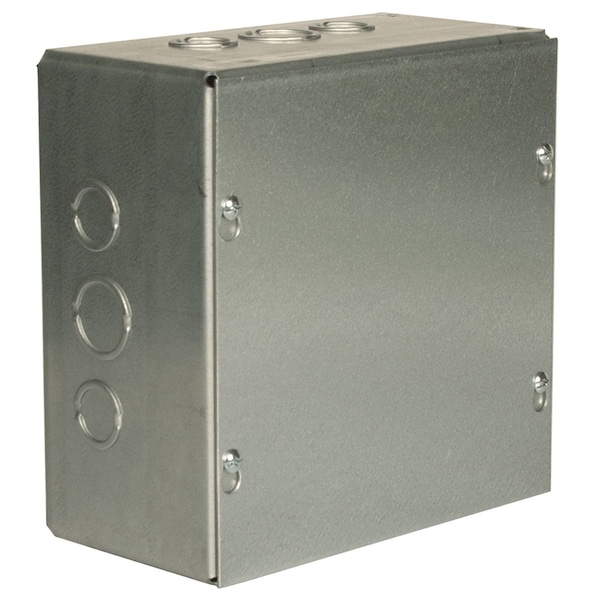

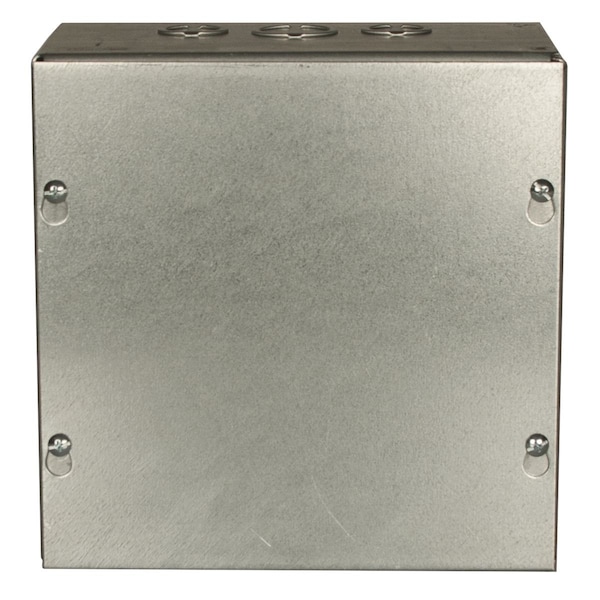

Screw Cover, 18 in. H x 18 in. W x 12 in. L, Carbon Steel
| Item | Screw Cover |
|---|---|
| Dimension | 18 in. H x 18 in. W x 12 in. L |
| Height | 18 in |
| Width | 18 in |
| Knockouts | Yes |
| Type | Enclosure |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Finish | Galvanized |
| NEMA Enclosure Type | NEMA 1 |
| Length | 12 in |
| Depth | 12 in |
| Features | Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides. |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Construction | Tack Welded |
| UL Listed | Yes |
| Actual Height | 18-1/8 in |
| Mounting Type | Mounting Holes |
| Actual Width | 18-1/8 in |
| Cubic Capacity | 3,888 cu in |
| Each - Width | 18 in |
| Cover Type | Screw Cover |
| Listings | UL, CSA |
| Certified Listed | cULus |
| Cable Entry | Knock Outs |
| Standard | cULus |
| Finish Type | Galvanized |
| Nema Rating | 1 |
| Package Quantity | 1 |
