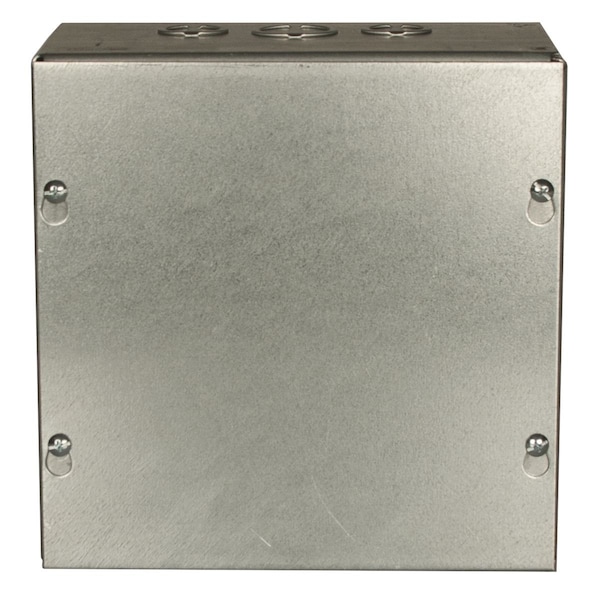

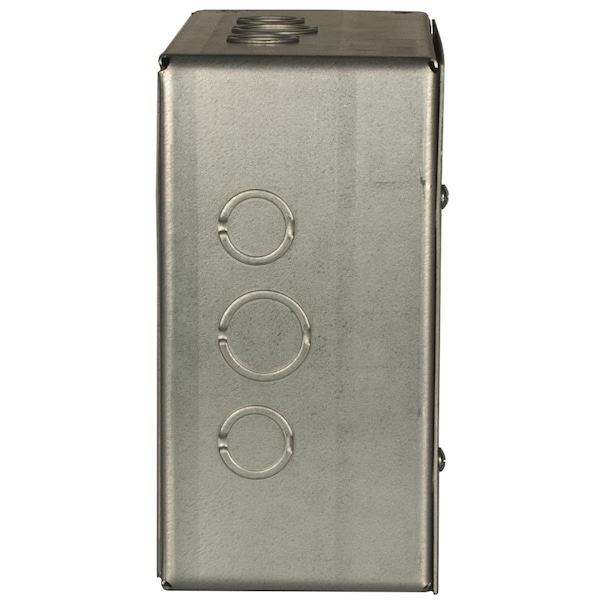

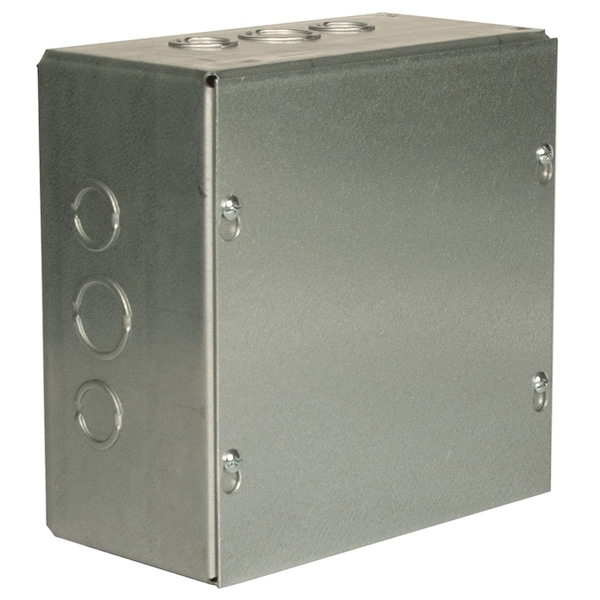

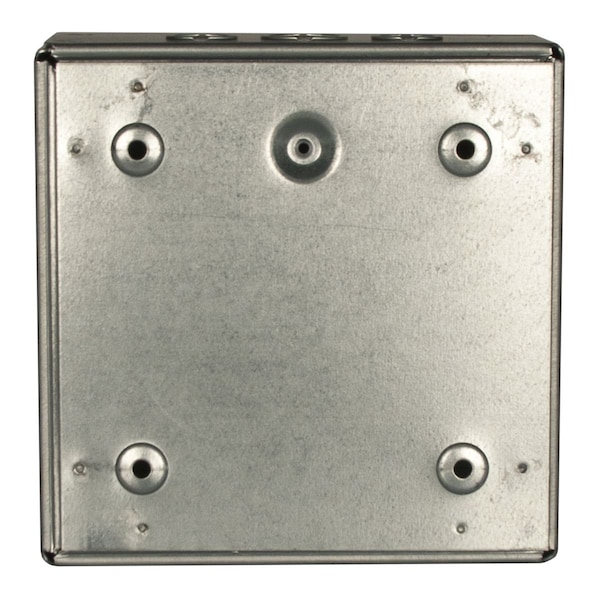

Screw Cover, 24 in. H x 12 in. W x 4 in. L, Carbon Steel
| Item | Screw Cover |
|---|---|
| Dimension | 24 in. H x 12 in. W x 4 in. L |
| Height | 24 in |
| Width | 12 in |
| Knockouts | Yes |
| Type | Enclosure |
| Mounting | Embossed Mounting Holes |
| Material | Carbon Steel |
| Finish | Galvanized |
| NEMA Enclosure Type | NEMA 1 |
| Depth | 4 in |
| Length | 4 in |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Features | Fabricated from 16 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides. |
| Finish Type | Galvanized |
| UL Listed | Yes |
| Actual Height | 24-1/8 in |
| Construction | Spot Welded |
| Actual Width | 12-1/8 in |
| Certified Listed | cULus |
| Nema Rating | 1 |
| Cubic Capacity | 1,152 cu in |
| Actual Depth | 4.188 in |
| Mounting Type | Embossed Mounting Holes |
| Standard | cULus |
| Cover Type | Screw Cover |
| Each - Width | 12 in |
| Cable Entry | Knock Outs |
| Listings | UL, CSA |
| Package Quantity | 1 |
