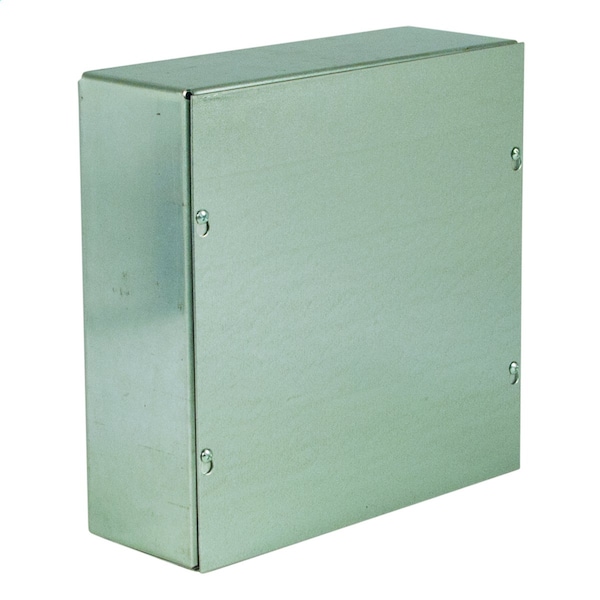

Screw Cover, 30 in. H x 30 in. W x 10 in. L, Carbon Steel
| Item | Screw Cover |
|---|---|
| Dimension | 30 in. H x 30 in. W x 10 in. L |
| Height | 30 in |
| Width | 30 in |
| Knockouts | No |
| Type | Enclosure |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Finish | Galvanized |
| NEMA Enclosure Type | NEMA 1 |
| Depth | 10 in |
| Length | 10 in |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Features | Fabricated from 12 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. |
| Construction | Tack Welded |
| Actual Height | 30-1/8 in |
| Actual Width | 30-1/8 in |
| Each - Width | 30 in |
| Certified Listed | cULus |
| Finish Type | Galvanized |
| Listings | UL, CSA |
| UL Listed | Yes |
| Cover Type | Screw Cover |
| Nema Rating | 1 |
| Actual Depth | 10-1/8 in |
| Mounting Type | Mounting Holes |
| Cubic Capacity | 9,000 cu in |
| Standard | cULus |
| Package Quantity | 1 |
