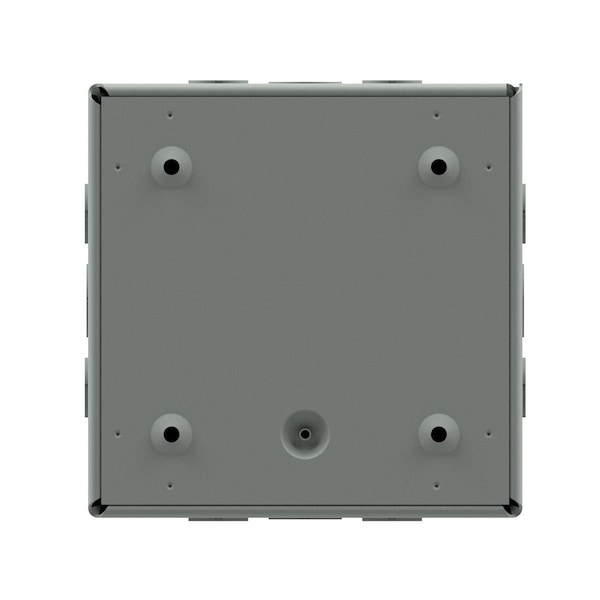

Screw Cover, 36 in. H x 24 in. W x 8 in. L, Carbon Steel
| Item | Screw Cover |
|---|---|
| Dimension | 36 in. H x 24 in. W x 8 in. L |
| Height | 36 in |
| Width | 24 in |
| Knockouts | Yes |
| Type | Enclosure |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Color | Gray |
| Finish | Smooth |
| NEMA Enclosure Type | NEMA 1 |
| Length | 8 in |
| Depth | 8 in |
| Features | Fabricated from 14 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides. |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| UL Listed | Yes |
| Nema Rating | 1 |
| Listings | UL, CSA |
| Construction | Tack Welded |
| Finish Type | Smooth |
| Standard | cULus |
| Each - Width | 24 in |
| Mounting Type | Mounting Holes |
| Certified Listed | cULus |
| Actual Width | 24-1/8 in |
| Cover Type | Screw Cover |
| Cable Entry | Knock Outs |
| Cubic Capacity | 6,912 cu in |
| Package Quantity | 1 |
