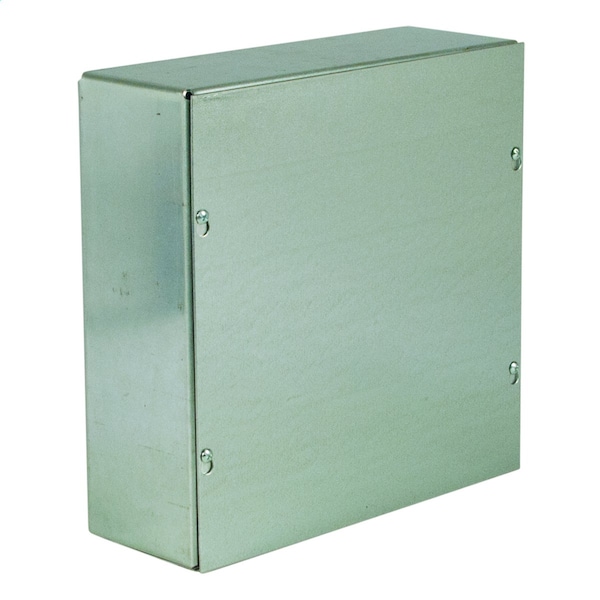

Screw Cover, 36 in. H x 24 in. W x 8 in. L, Carbon Steel
| Item | Screw Cover |
|---|---|
| Dimension | 36 in. H x 24 in. W x 8 in. L |
| Height | 36 in |
| Width | 24 in |
| Knockouts | No |
| Type | Enclosure |
| Mounting | Mounting Holes |
| Material | Carbon Steel |
| Finish | Galvanized |
| NEMA Enclosure Type | NEMA 1 |
| Length | 8 in |
| Depth | 8 in |
| Features | Fabricated from 14 gauge G-90 pre-galvanized steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Actual Width | 24-1/8 in |
| Listings | UL, CSA |
| Each - Width | 24 in |
| Standard | cULus |
| UL Listed | Yes |
| Mounting Type | Mounting Holes |
| Cubic Capacity | 6,912 cu in |
| Finish Type | Galvanized |
| Nema Rating | 1 |
| Construction | Tack Welded |
| Cover Type | Screw Cover |
| Certified Listed | cULus |
| Package Quantity | 1 |
