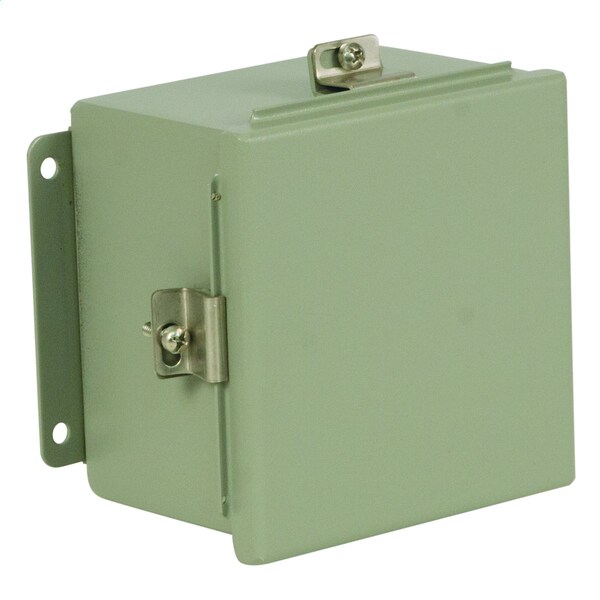

Screws and Clamps Electrical Enclosures, 12 in H, 5 in D, 10 in W
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 10 in |
| Nominal Height | 12 in |
| Nominal Depth | 5 in |
| Closure Method | Screws, Clamps |
| Knockouts | Yes |
| Metallic / Non-Metallic | Metallic |
| Color | Silver |
| Finish | Polyester Powder |
| Mounting | Wall |
| Enclosure NEMA Rating | NEMA 4 |
| Solid / Clear Cover | Solid |
| Material of Enclosure | Carbon Steel |
| Features | Bodies fabricated from 14 gauge and doors fabricated from 16 gauge steel; Continuously welded seams ground smooth, less knockouts or holes; Closed cell oil resistant neoprene gasket; External mounting plates, top and bottom of enclosure; Weldnuts are provided to secure optional panel; Stainless steel screws and clamps on four sides of cover to assure water tight seal; Grounding provisions provided; Optional back panels and terminal kits must be ordered separately |
| Enclosure Cover Type | Lift Off |
| Standards | UL, CSA |
| Weight | 12 lb. |
| Application | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection where equipment is hosed down, very wet, or in outdoor applications. |
| Capacity | 1,440 cu in |
| Package Quantity | 1 |
