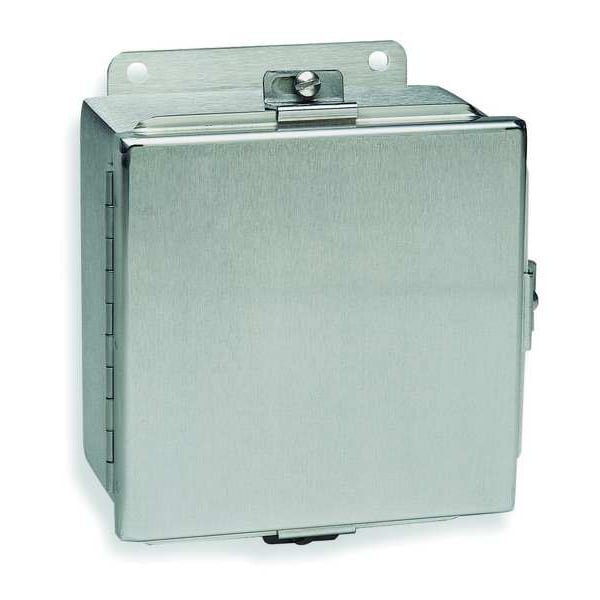

Screws and Clamps Electrical Enclosures, 14 in H, 6 in D, 12 in W, 12, 13, 4, 4X
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 12 in |
| Nominal Height | 14 in |
| Nominal Depth | 6 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Enclosure Material | Stainless Steel |
| Closure Method | Screws, Clamps |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | #3 Brushed |
| Mounting | Wall |
| Cover Style | Solid |
| Metal Gauge | 16 ga |
| Enclosure Cover Type | Hinged |
| Enclosure NEMA Rating | NEMA 4X |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 1TDM5 |
| Material of Enclosure | 304 Stainless Steel |
| IP Rating | IP66 |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Enclosure Cover Features | Screwdown Clamps |
| Usable Opening Depth | 5.88 in |
| Series | BN4-CHSS |
| Features | External Mounting Plates |
| Solid / Clear Cover | Solid |
| Includes | Clamp, Stainless Steel Screws |
| Capacity | 1,008 cu in |
| Weight | 18 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Compatible Panel Model Number | P1412, P1412G, P1412SS |
| Body Material Thickness | 16 ga |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Package Quantity | 1 |
