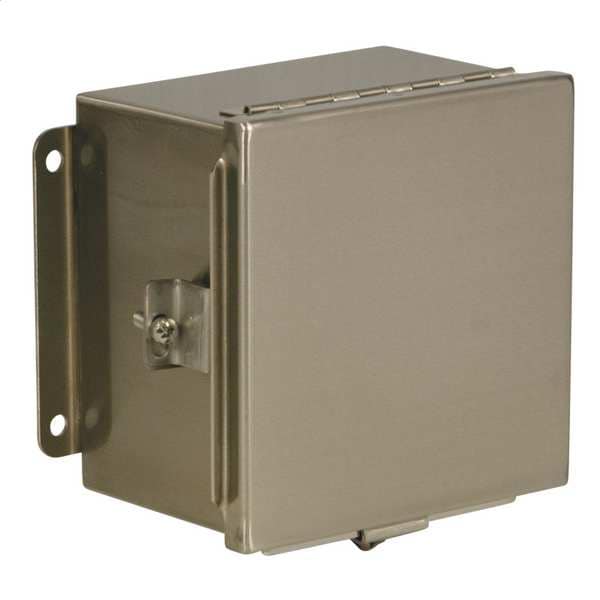

Screws and Clamps Electrical Enclosures, 6 in H, 4 in D, 6 in W, 12, 13, 4, 4X, 304 Stainless Steel
| CAD Available | Yes |
|---|---|
| Item | Electrical Enclosures |
| Nominal Width | 6 in |
| Nominal Height | 6 in |
| Nominal Depth | 4 in |
| NEMA Enclosure Rating | 12, 4, 13, 4X |
| Enclosure Material | Stainless Steel |
| Closure Method | Screws, Clamps |
| Cover Closure Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Stainless Steel |
| Finish | Brushed |
| Mounting | Wall |
| Cover Style | Solid |
| Enclosure Cover Type | Hinged |
| Series | BN4-CHSS |
| Usable Opening Depth | 3.88 in |
| IP Rating | IP66 |
| Metal Gauge | 16 ga |
| Standards | CSA Certified, cULus, IEC, UL Listed |
| Gasket | Seamless Polyurethane Poured in Place |
| Interior Panel | 6XC20 |
| Solid / Clear Cover | Solid |
| Features | External Mounting Plates |
| Material of Enclosure | 304 Stainless Steel |
| Enclosure NEMA Rating | NEMA 4X |
| Includes | Clamp, Stainless Steel Screws |
| Cover Type | Hinged Cover |
| Capacity | 144 cu in |
| Weight | 4 lb. |
| Application | Provides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants. |
| Body Material Thickness | 16 ga |
| Compatible Panel Model Number | P0606, P0606G, P0606SS |
| Gasket Material | Seamless Polyurethane Poured in Place |
| Includes Knockouts | Knockouts Not Included |
| Environment - MERCH | Washdown and Corrosion Resistant |
| Package Quantity | 1 |
