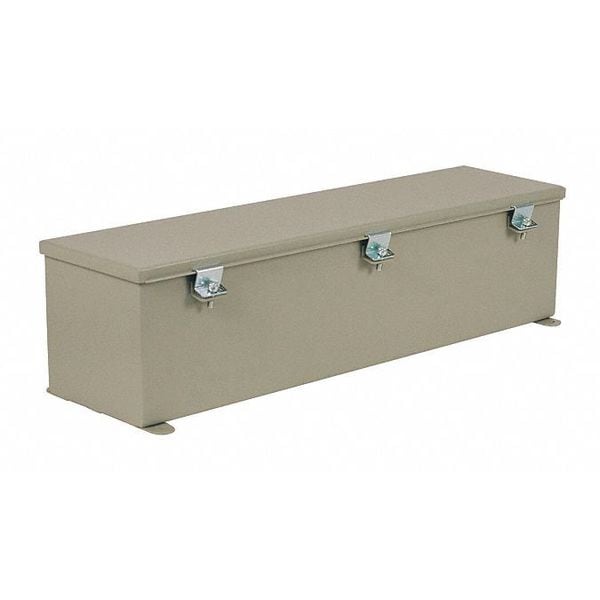

Steel Electrical Enclosures, 4 in H, 18 in D, 4 in W, NEMA 4, Hinged
| Item | Electrical Enclosures |
|---|---|
| Nominal Width | 4 in |
| Nominal Height | 4 in |
| Nominal Depth | 18 in |
| Enclosure NEMA Rating | NEMA 4 |
| Material of Enclosure | Steel |
| Closure Method | Clamps |
| Enclosure Cover Type | Hinged |
| Knockouts | No |
| Metallic / Non-Metallic | Metallic |
| Color | Gray |
| Finish | Polyester Powder |
| Solid / Clear Cover | Solid |
| Material | Steel |
| Standards | cULus |
| IP Rating | IP66 |
| Features | Trough and cover fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Oil resistant gasket and adhesive are provided. Trough comes complete with easy to operate external clamps and a continuous hinge. External mounting feet are provided. |
| Product Type | 4, Enclosure, Steel X 4 X 18 In |
| Application | Designed to protect from dirt, dust, oil, and water. |
| Package Quantity | 1 |
