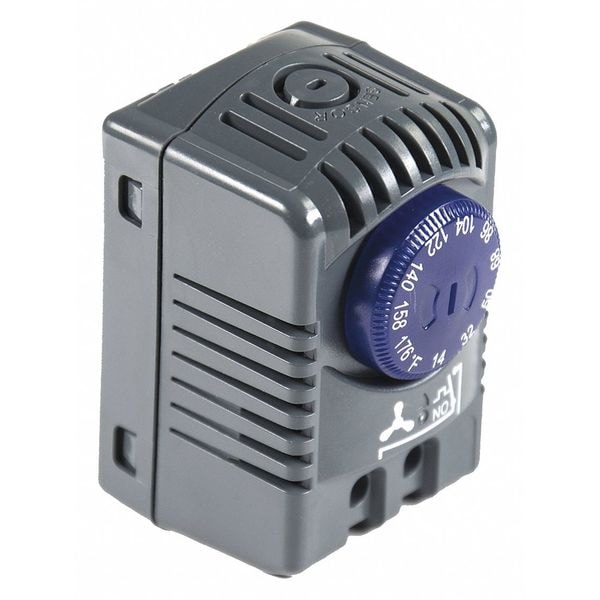

Thermostat, 2-23/64" H, 1-35/64" W, Gray
| Item | Thermostat |
|---|---|
| Color | Gray |
| Height | 2.3594 in |
| Width | 1.5469 in |
| Thermostat Control Range | 14 to 176 deg F |
| Thermostat Heating/Cooling | Cooling |
| Full Load Amps @ 240VAC | 16 A |
| For Use With | Cooling Units, Fans |
| Standards | UL/CUL Listed |
| Switch Action | Open on Rise |
| Sensor Type | Bimetal |
| Full Load Amps @ 120VAC | 16 A |
| Application | Industrial |
| Depth | 1.6719 in |
| Differential | 14 Degrees F |
| Overall Width | 1.54 in |
| Full Load Current @ 120V AC | 16 A |
| Mounting Style | DIN Rail |
| Housing Material | Plastic |
| Temperature Scale | Fahrenheit |
| Overall Height | 2.36 in |
| Temperature Adjustment | Adjustable |
| Operation Mode | Cooling Only |
| Frequency | 50/60 Hz |
| Temperature Setpoint - Minimum | 14 deg F |
| Operating Voltage | 250 V AC, 72 V DC |
| Temperature Setpoint - Maximum | 176 deg F |
| Full Load Current @ 240V AC | 16 A |
| Overall Depth | 1.67 in |
| Country of Origin (subject to change) | Malta |
| Package Quantity | 1 |
