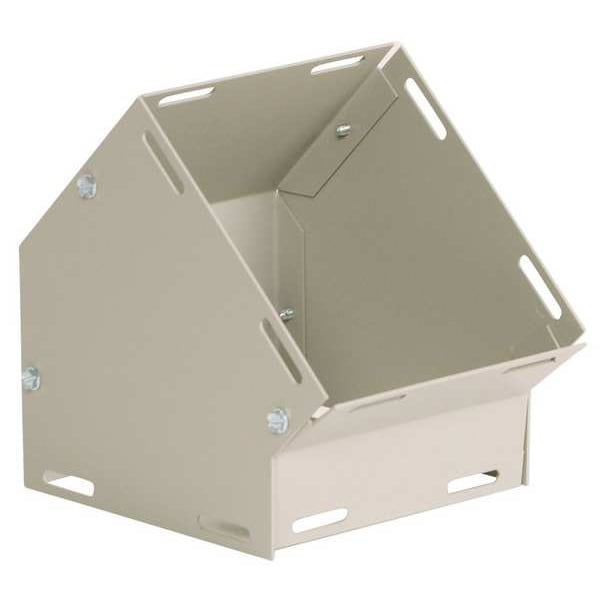

Wireway 45 Degree Elbow, 1 Type, NEMA 1 Rating, Steel, Powder Coated
| Item | Wireway 45 Degree Elbow |
|---|---|
| With/Without Knockouts | No |
| Finish | Powder Coated |
| NEMA Enclosure Type | 1 |
| Length | 9 in |
| Height | 10-1/8 in |
| Width | 6-1/4 in |
| For Use With | HS Series Wireways, S Series Wireways |
| NEMA Rating | NEMA 1 |
| Cover Type | Hinged/Screw-On |
| Material | Steel |
| Standards | CSA File LL66078, NEMA, UL E32576 |
| Application | For use with HS and S Series wireway. |
| Length (Straight Wireway) | 9 in |
| Gauge | 16 ga |
| Color | Gray |
| For Wireway Width x Height | 6 in x 6 in |
| For Wireway Width | 6 in |
| Cover Location | Top, Bottom |
| For Wireway Height | 6 in |
| Cover Locking Style | Screw Clamps |
| With Knockouts | No |
| Knockouts | No |
| Depth | 9 in |
| Features | Carbon steel 45 degrees elbow fitting. |
| Standard | cULus |
| Actual Height | 10-1/8 in |
| Actual Width | 6-1/4 in |
| Actual Length | 9 in |
| Certified Listed | cULus |
| Each - Width | 6-1/4 in |
| UL Listed | Yes |
| Fitting Type | 45 Degree Elbow |
| Type | Fitting |
| Finish Type | Polyester Powder |
| Accessory Type | Elbow |
| Listings | CSA, UL |
| Package Quantity | 1 |
