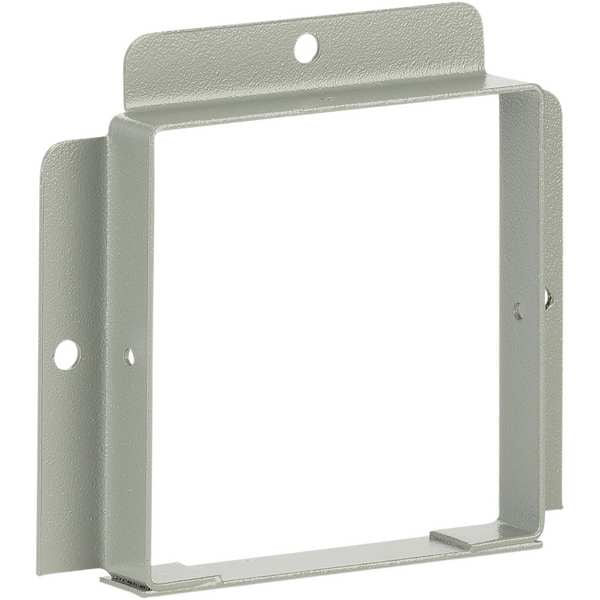

Wireway Panel Adapter, 1 Type, NEMA 1 Rating, Steel, ANSI 61 Polyester Powder
| Item | Wireway Panel Adapter |
|---|---|
| With/Without Knockouts | Without Knockouts |
| Finish | ANSI 61 Polyester Powder |
| NEMA Enclosure Type | 1 |
| Length | 5-1/2 in |
| Height | 2 in |
| Width | 5 in |
| For Use With | HS and S Series Wireways |
| NEMA Rating | NEMA 1 |
| Cover Type | Hinged/Screw Cover |
| Material | Steel |
| Standards | CSA File LL66078, NEMA, UL E32576 |
| Shape | Square |
| Application | For use with HS and S Series wireway. |
| With Knockouts | Without Knockouts |
| Length (Straight Wireway) | 5-1/2 in |
| For Wireway Width | 4 in |
| For Wireway Width x Height | 4 in x 4 in |
| Gauge | 16 ga |
| Color | Gray |
| For Wireway Height | 4 in |
| Depth | 6 in |
| Features | Carbon steel panel adapter fitting. |
| Construction | Formed and Spot Welded |
| UL Listed | Yes |
| Type | Accessory |
| Certified Listed | cULus |
| Actual Depth | 5-1/2 in |
| Each - Width | 5 in |
| Actual Length | 5-1/2 in |
| Standard | cULus |
| Actual Height | 1-1/2 in |
| Listings | CSA, UL |
| Accessory Type | Panel Adapter |
| Cubic Capacity | 60 cu in |
| Finish Type | Polyester Powder |
| Package Quantity | 1 |
