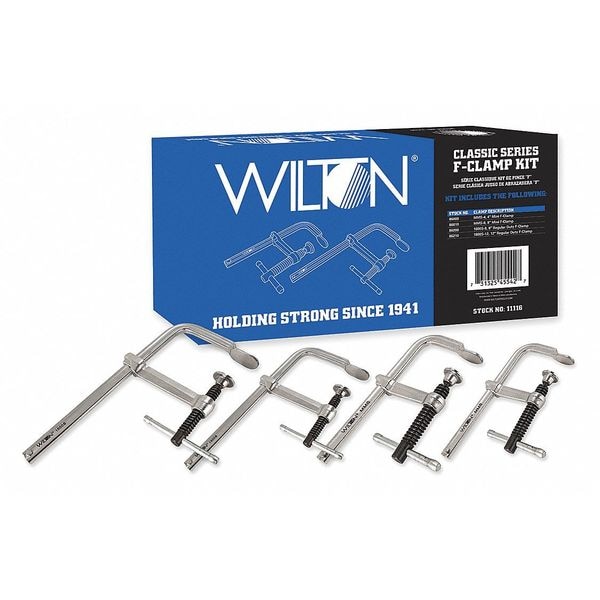

4", 8", 8", 12" Bar Clamp Set, Drop Forged Steel Handle and 5 1/2 in Throat Depth
| Handle Material | Drop Forged Steel |
|---|---|
| Throat Depth (In.) | 5-1/2 |
| Application | Welding and Fabrication |
| Includes | (1) Mfr. No. 86000, (1) Mfr. No. 86010, (1) Mfr. No. 86200, (1) Mfr. No. 86210 |
| Width (In.) | 4, 7-1/2, 8 |
| Opening (In.) | 12 |
| Nominal Clamping Pressure | 1,800 |
| Spindle Dia. (In.) | 1/2, 3/4 |
| Type | Light Duty |
| Pad Type | Standard |
| Item | Bar Clamp Set |
| Swivel Type | Standard |
| Max. Jaw Opening (In.) | 4, 8, 8, 12 |
| Nominal Rail Size (In.) | 7/16 x 7/32, 7/16 x 7/32, 1 x 15/32, 1 x 15/32 |
| Load Capacity (Lb.) | 400, 1,800 |
| Function | Clamp |
| Overall Width3 | 4 in, 7-1/2 in, 8 in |
| Spindle Finish1 | Black Oxide |
| Number of Clamps | 4 |
| Spindle Diameter1 | 3/4 in, 1/2 in |
| Jaw Pad Type | Swivel |
| Sliding Mechanism | Bar Slide |
| Bar Thickness | 7/16 in, 1 in |
| Clamping Force1 | 400 lb, 1,800 lb |
| Handle Style | Sliding T |
| Bar Type | Drop Forged |
| Clamping Capacity1 | 4 in, 8 in, 12 in |
| Throat Depth1 | 2-1/4 in, 4-3/4 in, 5-1/2 in |
| Package Quantity | 1 |
