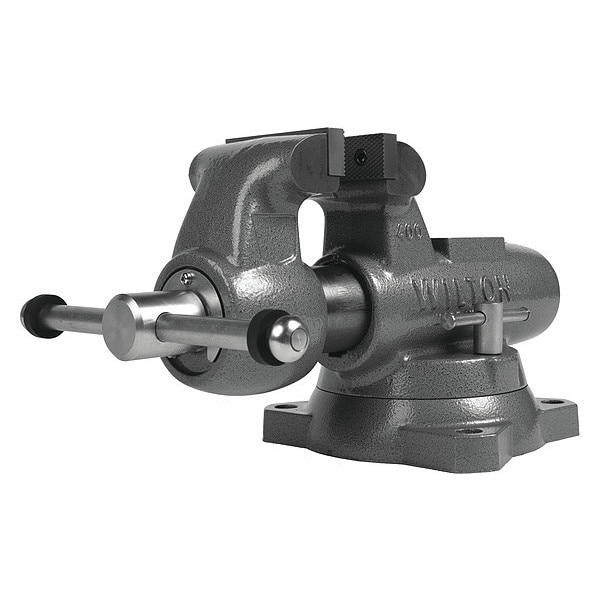

Machinist's Vise, Serrated Jaw, 9 13/16" L
| Item | Machinist's Vise |
|---|---|
| Features | Large Anvil Designed to Take a Beating While Forming and Shaping Materials, Longer Spindle Nut Ensures Smooth Movement and a Stronger Straight-Line Pull, Precision Slide Bar Eliminates Movement in the Front Jaw Regardless of Opened Distance, Sealed Construction Keeps Lubrication in and Contaminants Out for a Lifetime of Smooth Operation |
| Swivel Angle - Vises | 360 Degrees |
| Number of Mounting Points | 4 |
| Reversible | No |
| Quick-Acting | No |
| Overall Height | 9-13/16 in |
| Duty Rating - Vises | Heavy Duty |
| Jaw Width Range | 3 in to 5 in |
| High Visibility | No |
| Max. Opening Range | 5-1/8 in to 7 in |
| Deep Throat | No |
| Overall Length | 18-15/16 in |
| Max. Opening - Vises | 6 1/2 in |
| Jaw Type | Replaceable |
| Jaw Width - Vises | 4 in |
| Item - Vises | Machinist's Vise |
| Base Type - Vises | Swivel |
| Throat Depth Range | 3 in to 5 in |
| Rotating Angle | 360 Degrees |
| Overall Width | 8-15/16 in |
| Throat Depth - Vises | 3 1/2 in |
| Base Type | Swivel |
| Product Grouping - Vises | Bench Vises |
| Body Casting Tensile Strength | 60,000 psi |
| Mounting Hole Dia. | 11/16 in |
| Number of Lock Down Bolts | 2 |
| Pipe Jaw Included | No |
| Pipe Capacity - Vises | 1/4" to 6" |
| Jaw Face - Vises | Serrated |
| Material -Vises | Ductile Iron |
| High-Visibility | No |
| Includes Pipe Jaw | Yes |
| Jaw Material | Iron |
| Spindle Type | Enclosed |
| Base Swivel Angle | 360 Degrees |
| Mounting Hole Diameter | 5/8 in |
| Number of Mounting Holes | 4 |
| Body Tensile Strength | 60,000 psi |
| Body Material | Cast Iron |
| Includes Rotating Head | No |
| Jaw Face Width | 4 in |
| Vise Type | Machinist Vise |
| Jaw Attachment Type | Replaceable |
| Jaw Face Type | Serrated |
| Throat Depth | 3-1/2 in |
| Jaw Pad Material | Hardened Steel |
| Jaw Opening - Maximum | 6-1/2 in |
| Base Tensile Strength | 60,000 psi |
| Pipe Diameter - Maximum | Not Applicable |
| Base Material | Iron |
| Material Process | Cast |
| Package Quantity | 1 |
