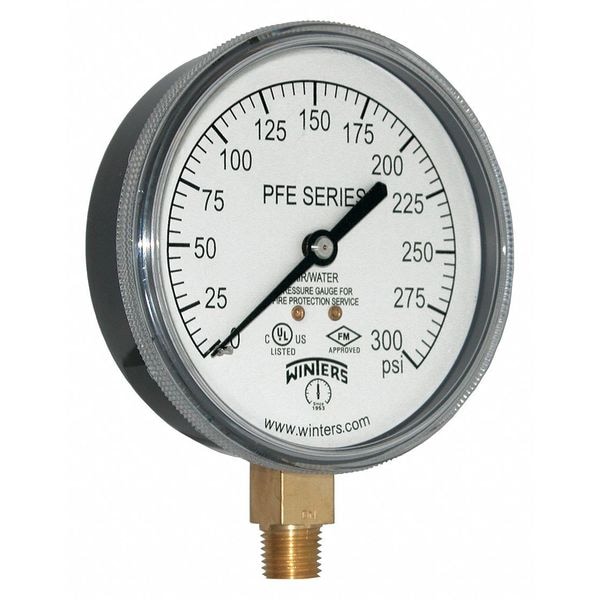

Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black
| Item | Fire Sprinkler System Pressure Gauge |
|---|---|
| Material | Plastic |
| Includes | Installation Date Sticker In Unit Box |
| Basic Gauge Socket Material | Brass |
| Connection Location | Bottom |
| Range | 0 to 300 psi |
| Connection Size | 1/4 in NPT |
| Dial Size (In.) | 3-1/2 |
| Gauge Primary Range Units | psi |
| Gauge Lens Material | Polycarbonate |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Accuracy | +/-3-2-3% |
| Gauge Sensor Material | Phosphor Bronze |
| Gauge Case Color | Black |
| Basic Gauge Sensor Material | Bronze |
| Gauge Primary Range Values | 0 to 300 |
| Basic Gauge Lens Material | Plastic |
| Gauge Socket Material | Brass |
| Gauge Connection Type | MNPT |
| Case Color | Black |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Gauge Accuracy | +/-3.00% |
| Characteristics | Corrosion Resistant Case, CRN Registered, Suitable for Air/Water Media, UL and FM Approved, Working Pressure is max. 75% of Full Scale Value |
| Gauge Connection Location | Bottom |
| Series | PFE |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Diameter | 3.874 in |
| Liquid Filled | No |
| Gauge Panel Mountable | No |
| Max. Pressure (PSI) | 300 |
| Manufacturers Warranty Length | 5 yr |
| Gauge Connection Size | 1/4 in |
| Basic Gauge Case Material | Plastic |
| Gauge Application | Ideally Suited for Fire Sprinkler Systems and Fire Fighting Equipment |
| Gauge Case Material | Plastic |
| Color | Black |
| Gauge Nominal Dial Size | 3 1/2 in |
| Calibration Certificate Included | No |
| Application | Fire Fighting Equipment, Fire Sprinkler Systems |
| Case Material | ABS |
| Socket Material | Brass |
| Standards | ASME B40.100, CRN Registered, Factory Mutual, UL-393 for USA and Canada |
| Accuracy Scale | Mid-Scale |
| Dial Color | White |
| Process Temperature Range | -40 Degrees to 150 Degrees F |
| Primary Pressure Range | 0 to 300 |
| Accuracy Grade | ASME B40.100 Grade B |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C |
| Freeze Resistant Movement | No |
| Pressure Range Type | Pressure |
| Scale Type | Single |
| Removable Bezel | No |
| Sensor Type | Bourdon Tube |
| Primary Scale Units | psi |
| Sensor Material | Bronze |
| Process Connection Location | Bottom |
| IP/NEMA Rating | IP52 |
| Dial Face Material | Aluminum |
| Manufacturer Warranty Length | 5 yr |
| Process Connection Type | NPT |
| Lens Material | Polycarbonate |
| Bezel Mounting Type | No Bezel |
| Movement Material | Brass |
| Pointer Material | Aluminum |
| Compatible Process Media | Air, Water |
| Pointer Color | Black |
| Nominal Dial Size | 3 1/2 in |
| Case Depth | 1.228 in |
| Case Construction | Plastic |
| Pressure Gauge Type | Fire Sprinkler System Gauge |
| Process Connection Gender | Male |
| Hazardous Location Rating | Not Rated |
| Process Connection Size | 1/4 in |
| Case Diameter | 3.681 in |
| Reads Head Pressure | No |
| Field Fillable | No |
| Primary Scale Vacuum Measurement - Maximum | Not Applicable |
| Secondary Scale Vacuum Measurement - Minimum | Not Applicable |
| Case Finish | Not Applicable |
| IP Rating | IP52 |
| Secondary Scale Pressure Measurement - Minimum | Not Applicable |
| Primary Scale Pressure Measurement - Minimum | 0 psi |
| Process Media Temperature - Minimum | -40 Degrees F |
| Includes Calibration Certificate | No |
| Secondary Scale Units | Not Applicable |
| Nominal Dial Diameter | 3 1/2 in |
| Compatible with Series | Not Applicable |
| Secondary Scale Vacuum Measurement - Maximum | Not Applicable |
| Operating Temperature - Minimum | -40 Degrees F |
| Primary Scale Pressure Measurement - Maximum | 300 psi |
| Primary Scale Vacuum Measurement - Minimum | Not Applicable |
| Secondary Scale Pressure Measurement - Maximum | Not Applicable |
| Liquid-Filled Case | No |
| Process Media Temperature - Maximum | 150 Degrees F |
| Case Liquid | None |
| Operating Temperature - Maximum | 150 Degrees F |
| NEMA Enclosure Rating | 5 |
| Compatible with Brand | Universal |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
