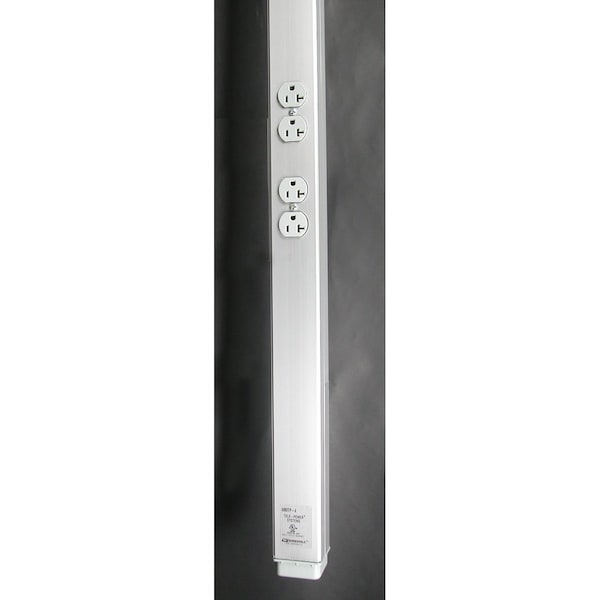

Service Pole, 2-5/16in., Aluminum
| Item | Service Pole |
|---|---|
| Material | Metallic |
| Color | Gray |
| Length | 10 ft 5 in |
| Depth | 2-3/8 in |
| Width | 2-1/4 in |
| Channel | 2 |
| Includes | (2) 20A 125V Duplex Receptacles |
| Standards | Accessories: File E53857 Guide RVUR Meets Article 380 and 386 of NEC, cULus Listed Multioutlet Assemblies: File E15191, E178348 Guide PVGT, Raceway Fittings: File E41751 Guide RJPR |
| Length (Straight Wireway) | 10 ft 5 in |
| Finish | Anodized |
| Total Number of Outlets | 6 |
| NEMA Outlets | (6) 5-20R |
| Wire Size | #10 THHN/ #15 THWN |
| Voltage | 125V |
| Data Communication Outlets | 0 |
| Features | Two-compartment pole (power and communications). Nominal material thickness .050'' (1.8mm). Length: 10' 5'' (3.2m). Factory wired with 20A 125V fed-spec general grade duplex style receptacles. An opening for communication and a 1/2'' (12.7mm) hole for power is provided at top. The 8'' (203mm) cover at top front of pole is removable for making power wiring connections. Communication KOs provided for RJ11/RJ45 and modular furniture connectors. Mounting hardware, entrance end fitting, and ceiling trim plates furnished. Anodized aluminum finish. Available in standard length of 10' 5'' (3.2m), 12' 5''(3.8m), and 15' 5'' (4.7m). NOTE 1: Custom colors, other lengths (20' (6.1m) max.) or additional circuits are available on custom orders. Consult factory for more information. Can be factory- or field-wired with many commercially available devices. NOTE 2: Add the suffix ''-C'' for the cord-ended version (10' (3.0m) cord). Cord-ended version AVAILABLE IN CANADA ONLY. |
| Standard | cULus Listed Multioutlet Assemblies: File E15191, E178348 Guide PVGT. Raceway Fittings: File E41751 Guide RJPR. Accessories: File E53857 Guide RVUR Meets Article 380 & 386 of NEC. |
| Special Features | Bring power, data, and A/V services into open spaceenvironments quickly & easily. Custom capabilities. On-site configurability. A/V Compatibility. Datacom connectivity options. |
| Product Environmental Profile | Yes |
| cULus Listed | Yes |
| Product Line | Wiremold |
| Package Quantity | 1 |
