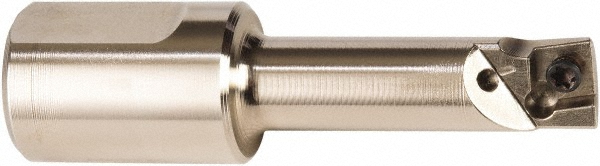

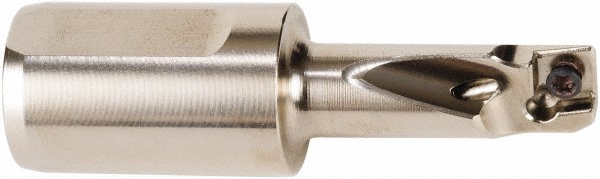

58.00 mm OAL, Screw, Uses CC.. 06.. Inserts
| Minimum Bore Diameter (mm) | 10.00 |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3940 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| Maximum Bore Depth (mm) | 35.00 |
| Toolholder Style | F10192D-S |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3940 |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3940 |
| Tool Material | Steel |
| Insert Compatibility | CC.. 06.. |
| Shank Diameter (mm) | 16.00 |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 2.2840 |
| Overall Length (mm) | 58.00 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Rake Angle | 7.00 |
| Lead Angle | 92 |
| Series | Wohlhaupter 019 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (mm) | 6.35 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.3567 |
| Back of Bar to Cutting Edge (mm) | 9.06 |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Center to Cutting Edge (mm) | 4.80 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Bore Diameter (mm) | 17.00 |
| UNSPSC Code | 23241601 |
| Maximum Bore Diameter (Decimal Inch) | 0.6690 |
| Maximum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.6690 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.6690 |
| Manufacturers Catalog Number | 90201US/08.2013 |
| Coolant Through | Yes |
| Country of Origin | Germany |
| MSC Number | MSC# 32758229 |
