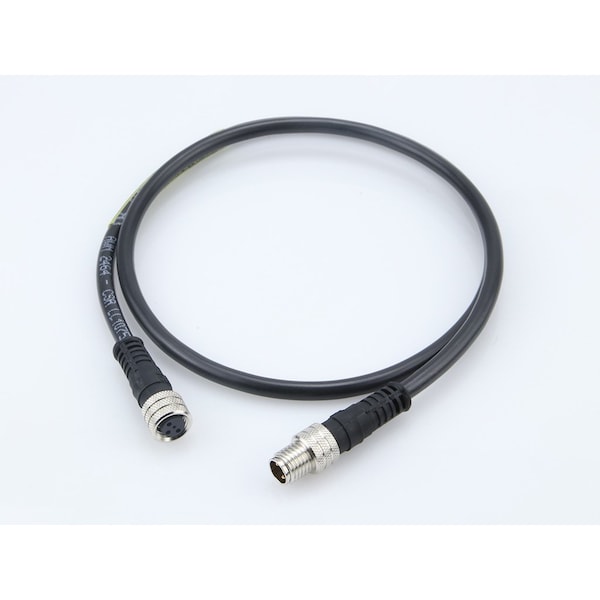

Caja M8 M8 3P Ac Fe Str Wsor Ma S.
| Color | Black |
|---|---|
| Series | 120087 |
| Max. Voltage | 60 V |
| Length | 9.84 ft |
| Connector Type | Female-Male |
| Material | Polyurethane |
| IP Rating | IP67 |
| Contact Finish | Gold Plated |
| Max. Temp. | 85 deg C |
| Current Rating | 3 A |
| Wire Range | 24 AWG |
| Type | Double Ended |
| Coupling Style | Knurled Hexnut, Threaded |
| Connector End B | Nano-Change |
| Product Name | Nano-Change |
| Material - O-Ring | Fluoro-elastomer |
| Material - Cable Jacket | TPU |
| Poles | 3 |
| Current - Maximum per Contact | 3 A |
| Material - Coupling Nut | Nickel-plated Brass |
| Material - Contact | Brass |
| Temperature Range - Operating | -25° to +85°C |
| Wire/Cable Type | UL 21215 |
| LED Indicator | No |
| Cable Diameter | 4.50mm (.177") |
| Orientation | Straight to Straight |
| Wire Size (AWG) | 24 |
| Cable Length | 3 m |
| Keyway | A-coded |
| Connector End A | Nano-Change |
| Material - Plating Mating | Gold |
| Voltage - Maximum | 60V AC / 75V DC |
| Material - Connector Body | TPU |
| Package Quantity | 1 |
