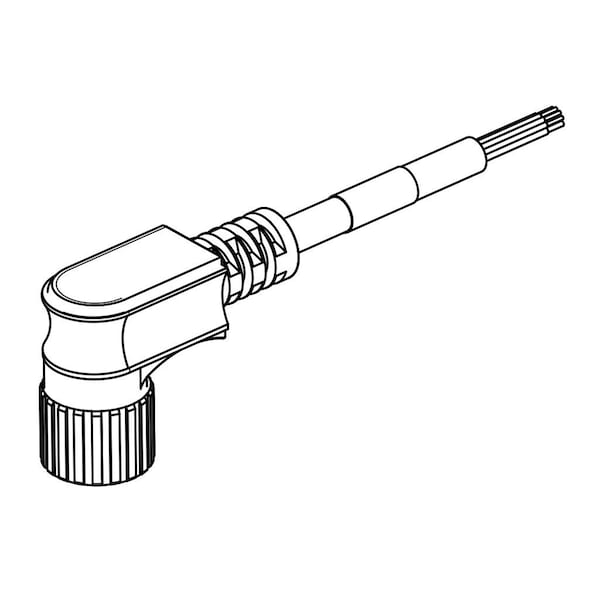

El conector Woodhead M23 12P 11W Fe 90 10M Wsor es un componente de alta calidad y rendimiento para aplicaciones industriales. Con 12 pines y 11W de potencia, este conector ofrece una conexión segura y confiable. Fabricado con materiales de primera, garantiza durabilidad y resistencia en entornos exigentes.
| Cable Length | 10 m |
|---|---|
| Type | Single Ended |
| Keyway | A-coded |
| IP Rating | IP67 |
| Material - Plating Mating | Nickel |
| Coupling Style | Threaded |
| Current - Maximum per Contact | 6 A |
| Temperature Range - Operating | -25° to +90°C |
| Material - Coupling Nut | Nickel-plated Brass |
| LED Indicator | No |
| Voltage - Maximum | 63V AC/DC |
| Gender | Female-Pigtail |
| Wire Size (AWG) | 19, 22 |
| Poles | 12 |
| Product Name | Brad M23 |
| Series | 120094 |
| Cable Diameter | 8.50mm (.335") |
| Orientation | 90° to Pigtail |
| Connector End A | M23 |
| Material - Cable Jacket | TPU |
| Color - Cable Jacket | Black |
| Connector End B | Pigtail |
| Wire/Cable Type | UL 21215 |
| Material - Contact | Bronze |
| Material - Connector Body | TPU |
| Package Quantity | 1 |
