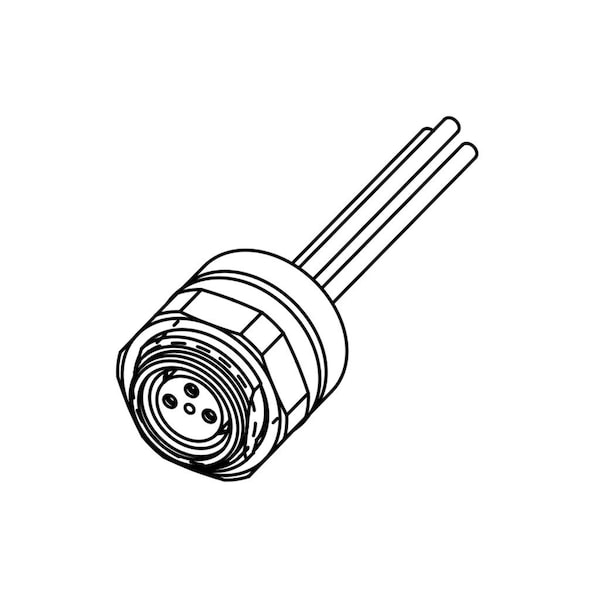

M8-3P-Recfem-Back-0.2M significa que es un cable con un conector tipo M8 de 3 pines en un extremo y un conector tipo hembra rectangular en el otro extremo, con una longitud de 0.2 metros.
| Series | 120090 |
|---|---|
| Length | 0.2 m |
| NEMA Rating | NEMA 6 |
| Keyway | None |
| IP Rating | IP67 |
| Type | Single Ended (pigtail) |
| Wire/Cable Type | Leads |
| Coupling Type | Internal Thread |
| Poles | 3 |
| Gender | Female |
| Voltage - Maximum | 60V AC / 75V DC |
| Temperature Range - Operating | -25°C to +90°C |
| Orientation | Straight |
| Panel Mount | Back |
| Mounting Thread Size | M8 x 1.0 |
| Current - Maximum per Contact | 4 A |
| Wire Size AWG | 24 |
| Material - Component | Nickel-plated Brass |
| Product Name | Nano-Change |
| Package Quantity | 1 |
