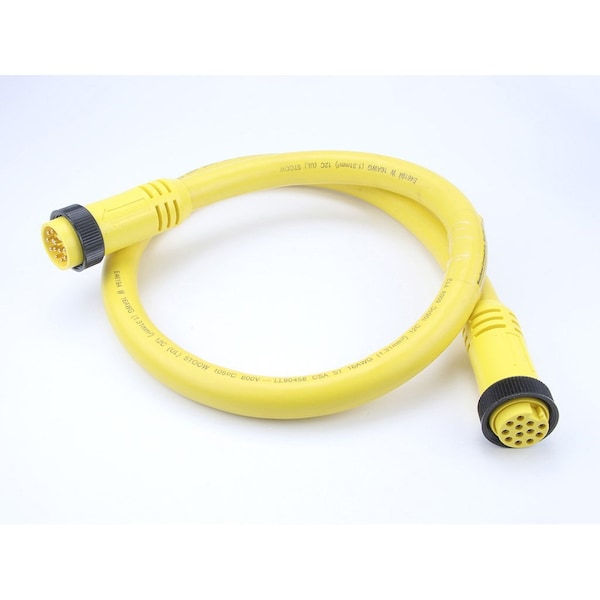

Mc 12P Mfe 12M 16/12 Tpe Flx
12 puertos hembra, 12 puertos macho, 16/12 Tpe Flex
| Cable Length | 12 m |
|---|---|
| IP Rating | IP67 |
| Keyway | Single |
| Type | Double Ended |
| Current - Maximum per Contact | 5 A |
| Material - Contact | Brass |
| Series | 130012 |
| Cable Diameter | 14.99 mm |
| Wire/Cable Type | TC-ER |
| Temperature Range - Operating | -20° to +90°C |
| Protocol | FF |
| Wire Size (AWG) | 16 |
| Material - Plating Mating | Gold |
| Connector End B | Mini-Change |
| Color - Cable Jacket | Yellow |
| UL | E152210 |
| Orientation | Straight to Straight |
| Poles | 12 |
| Voltage - Maximum | 600 V |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Coupling Style | Threaded |
| Material - Connector Body | TPE |
| Product Name | Mini-Change |
| Gender | Female-Male |
| Connector End A | Mini-Change |
| LED Indicator | No |
| Material - Cable Jacket | TPE |
| Package Quantity | 1 |
