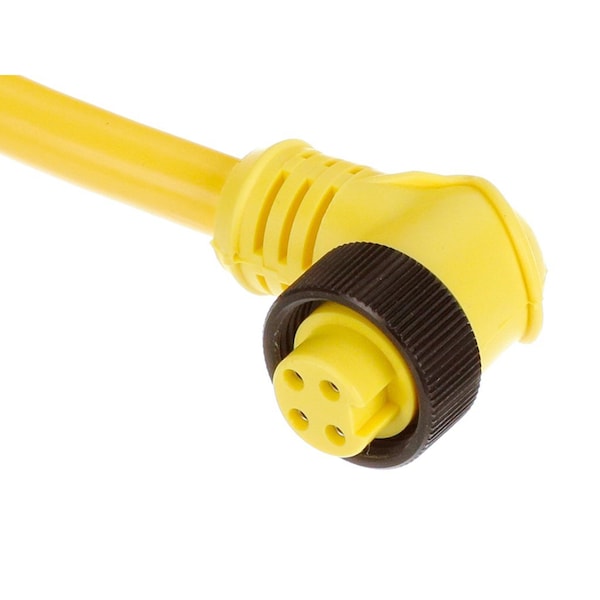

Mc 4P M/Mfe 8M St/90 16/4 Tpe
4 pines macho a hembra, 8 metros con conector estándar de 90 grados y 16/4 TPE.
| Cable Length | 8 m |
|---|---|
| Series | 130010 |
| IP Rating | IP67 |
| Keyway | Single |
| Type | Double Ended |
| Gender | Female-Male |
| Product Name | Mini-Change |
| Connector End A | Mini-Change |
| Connector End B | Mini-Change |
| Orientation | 90° to Straight |
| Temperature Range - Operating | -20° to +105°C |
| Material - Contact | Copper Alloy |
| Material - Cable Jacket | TPE |
| Poles | 4 |
| Material - Connector Body | TPE |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Voltage - Maximum | 600 V |
| Wire Size (AWG) | 16 |
| Current - Maximum per Contact | 10 A |
| Coupling Style | Threaded |
| Material - Plating Mating | Gold |
| Color - Cable Jacket | Yellow |
| Cable Diameter | 10.67 mm |
| LED Indicator | No |
| Wire/Cable Type | TC-ER |
| UL | E152210 |
| Package Quantity | 1 |
