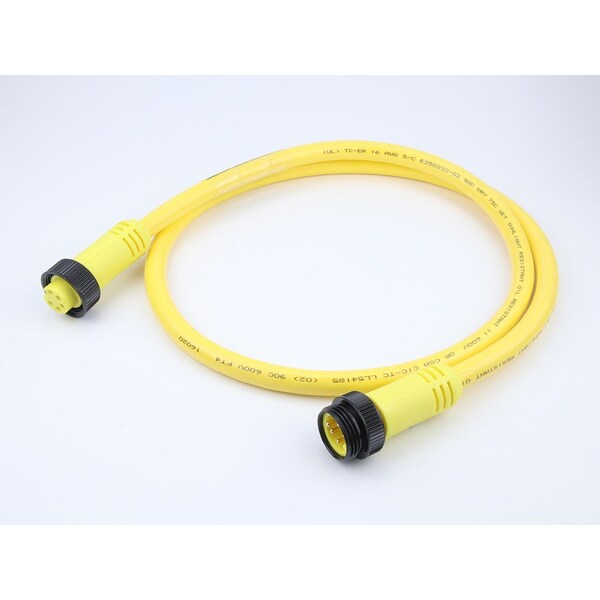

Mc 5P M/Mfe 30M 16/5 Tpe
| Series | 130010 |
|---|---|
| Type | Double Ended |
| IP Rating | IP67 |
| Current - Maximum per Contact | 8 A |
| Wire/Cable Type | TC-ER |
| Temperature Range - Operating | -20° to +105°C |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Connector End A | Mini-Change |
| Color - Cable Jacket | Yellow |
| Poles | 5 |
| Connector End B | Mini-Change |
| UL | E152210 |
| Cable Diameter | 12.70mm (.500") |
| Material - Connector Body | TPE |
| Material - Contact | Copper Alloy |
| Gender | Female-Male |
| LED Indicator | No |
| Product Name | Mini-Change |
| Wire Size (AWG) | 16 |
| Orientation | Straight to Straight |
| Material - Cable Jacket | TPE |
| Cable Length | 30 m |
| Voltage - Maximum | 600V |
| Keyway | Single |
| Material - Plating Mating | Gold |
| Coupling Style | Threaded |
| Package Quantity | 1 |
