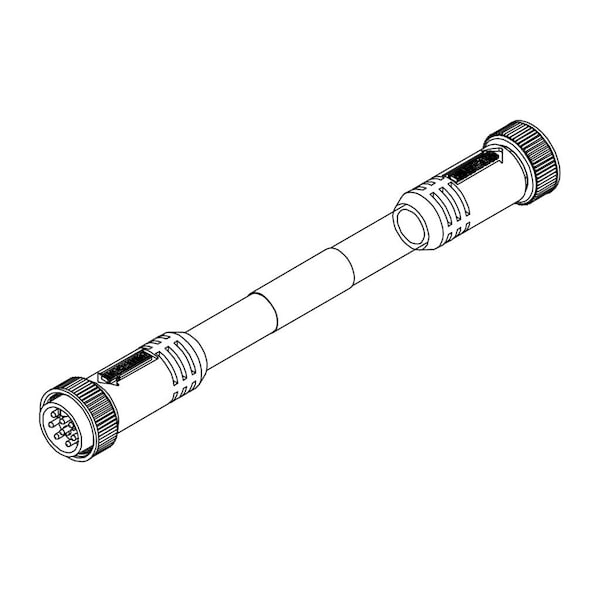

Mc 8P Mfe 15M 8 Pvc Micro Mpis - 8 pines de Micro PVC de 15 metros.
| Cable Length | 15 m |
|---|---|
| Type | Double Ended |
| Keyway | Single |
| IP Rating | IP67 |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Cable Diameter | 7.36 mm |
| Poles | 8 |
| Temperature Range - Operating | -20° to +90°C |
| Color - Cable Jacket | Yellow |
| Gender | Female-Male |
| LED Indicator | No |
| Material - Cable Jacket | PVC |
| Wire/Cable Type | AWM 2661 |
| Material - Connector Body | TPE |
| Material - Plating Mating | Gold |
| CSA | LR6837 |
| Connector End A | Mini-Change |
| Material - Contact | Copper Alloy |
| Series | 130011 |
| Orientation | Straight to Straight |
| Protocol | DeviceNet |
| Wire Size (AWG) | 18, 22 |
| Voltage - Maximum | 300 V |
| Current - Maximum per Contact | 2.5 A |
| Connector End B | Mini-Change |
| Coupling Style | Threaded |
| Product Name | Mini-Change |
| Package Quantity | 1 |
