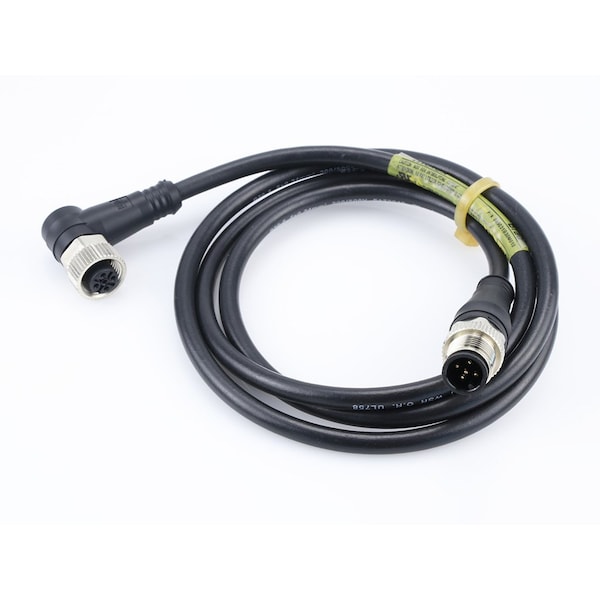

Conector de doble extremo Micro-Change (M12) con tuerca hexagonal estriada, de 5 polos.
| Color | Black |
|---|---|
| Series | 120066 |
| Max. Voltage | 60 V |
| Length | 16.4 ft |
| Material | Polyurethane |
| Wire Range | 22 AWG |
| Connector Type | Female-Male |
| Type | Double Ended |
| Contact Finish | Gold Plated |
| Max. Temp. | 85 deg C |
| IP Rating | IP67 |
| Current Rating | 4 A |
| Standards | UL E152210 |
| Keyway | Single |
| Cable Diameter | 5.50mm (.216") |
| Material - Cable Jacket | TPU |
| Connector End B | Micro-Change |
| Cable Length | 5 m |
| Connector End A | Micro-Change |
| Material - Plating Mating | Gold |
| Wire/Cable Type | UL 21215 |
| Temperature Range - Operating | -25° to +85°C |
| LED Indicator | No |
| Current - Maximum per Contact | 4 A |
| Material - O-Ring | Fluoro-elastomer |
| Orientation | 90° to Straight |
| Material - Connector Body | TPU |
| Wire Size (AWG) | 22 |
| Material - Contact | Brass |
| Product Name | Micro-Change |
| Poles | 5 |
| Coupling Style | Knurled Hexnut, Threaded |
| UL | E152210 |
| Material - Coupling Nut | Nickel-plated Brass |
| Package Quantity | 1 |
